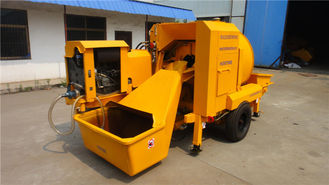

Air Cooling Diesel Injection Pump Concrete Pump Equipment HBT20 15rpm
Introducción
Diesel concrete pump mixer is suitable for all kinds of dispersed locations, less construction, longer distance from site to commodity concrete agitate plant. For example: 10 layer below the group main building structure, building and underground garage floor, civil construction of inclined roof, small bridges, tunnels, water conservancy slope, small river locks and boat lock, electric power communication tower base, small wharf, mine construction, concrete roadway maintenance field sites scattered, engineering the quantity is less, the commodity concrete batch plant is not willing to do or they do not economic construction, concrete construction project site mixed.
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

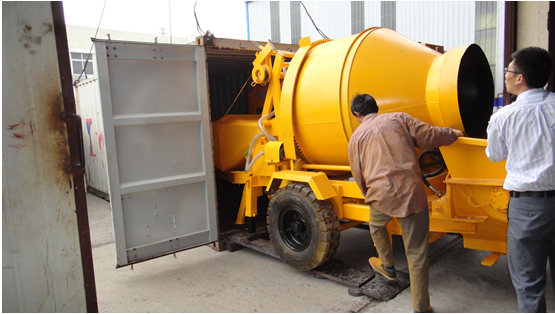

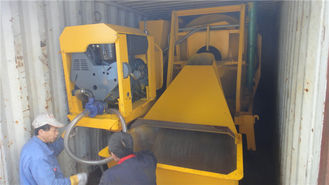

Clients' Working Site
There is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
Advantage
There is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
Specification
Air Cooling Diesel of Concrete Pump With Mixer HBT20 For 15 Layer Building
Diesel concrete pump with mixer performance parameters
Diesel concrete pump with mixer performance parameters
| Item | Unit | HBT2008JZC350 |
| Pump Max Output | m³/h | 15 |
| Theoretical Output | m³/h | 23 |
| Max. Pressure on Concrete | MPa | 8 |
| delivery cylinder | mm | 180×800 |
| main oil cylinder bore/Rod diameter x stroke | mm | Φ110/Φ65×800 |
| Oil tank capacity | L | 250 |
| Outlet opening diameter | mm | Φ150 |
| Diesel model | F4L912(DEUTZ) | |
| Diesel power | KW | 45 |
| Max. diameter of aggregates | mm | 40 |
| Maximum delivery Horizontal distance | M | 200 |
| Maximum delivery Vertical distance | M | 40 |
| Mixer Type | TOPLL | JZC350 |
| Capacity of charge Hopper | L | 560 |
| Capacity of discharge Hopper | L | 350 |
| Charge hopper cylinder bore/Rod diameter x stroke | mm | Φ80/Φ50×600 |
| Diameter of drum | mm | 1440 |
| Drum rotary speed | rpm | 15 |
| Tread distance | mm | 2250 |
| length ×width ×height | mm | 5500×2300×2700 |
