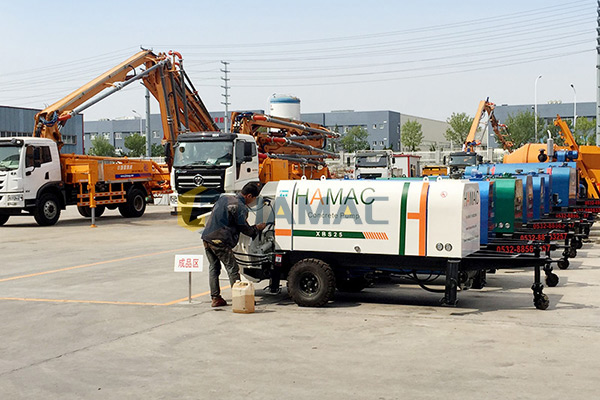

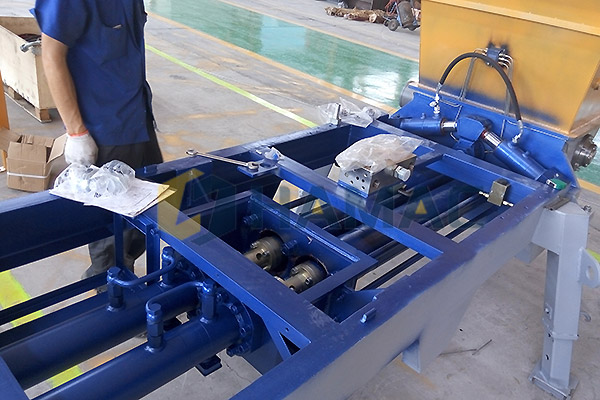

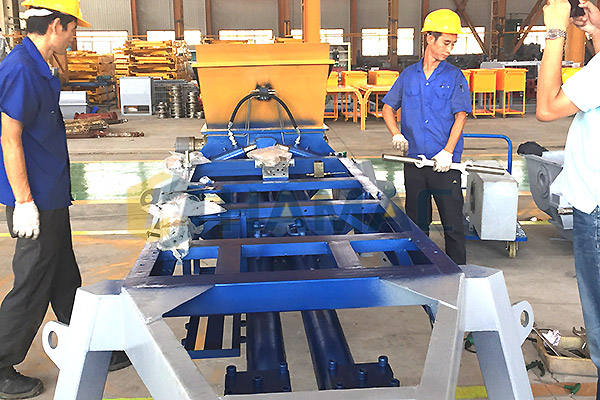

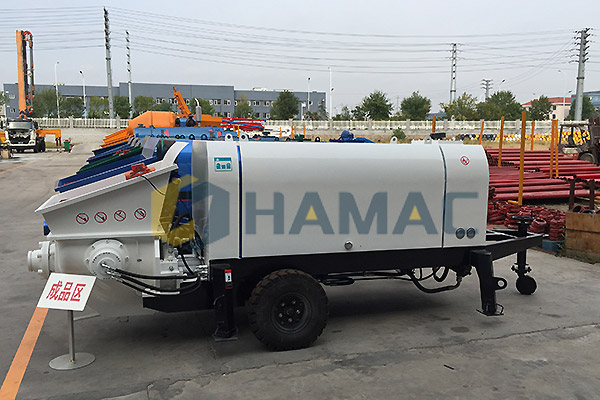

Detailed Photos
Performance
XBS/DXBS series products are also widely used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.
The inner diameter of conveying pipe has developed into φ100 based n formerφ80 so that XBS/DXBS series products can convey concrete with diameter no more than 30mm, which makes XBS DXBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.
Specification
Item | Unit | Motor engine concrete pump | Diesel engine concrete pump | |||||||
XBS25-12-33 | XBS30-13-40 | XBS40-13-48 | DXBS25-12-56 | DXBS30-13-56 | DXBS40-13-56 | |||||
Max. theoretic delivery volume | M3/h | 25 | 30 | 40 | 25 | 30 | 40 | |||
Max. outlet pressure | Mpa | 12 | 13 | 13 | 12 | 13 | 13 | |||
Main oil pump volume | Ml/r | - | - | - | 63 | 80 | 112 | |||
Max. aggregate diameter | mm | ≤30(≤20) | ||||||||
Cylinder diameter*stroke | mm | φ140×800 | φ140×1000 | φ140×1000 | φ140×1200 | φ140×1200 | φ140×1200 | |||
Power | Kw | 30 | 40 | 48 | 56 | 56 | 56 | |||
Inner diameter of delivery pipeline | mm | φ100(φ80) | φ100(φ80) | φ100(φ80) | φ100(φ80 | φ100(φ80) | ||||
Overall | mm |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
4600×1500 ×1550 |
|||
Weight | kg | 2000 | 2100 | 2100 | 2300 | 2450 | 2450 | |||
Max. theoretic delivery distance | Horizontal | m | 400 | 500 | 600 | 350 | 450 | 550 | ||
vertical | m | 140 | 160 | 180 | 140 | 160 | 180 |
