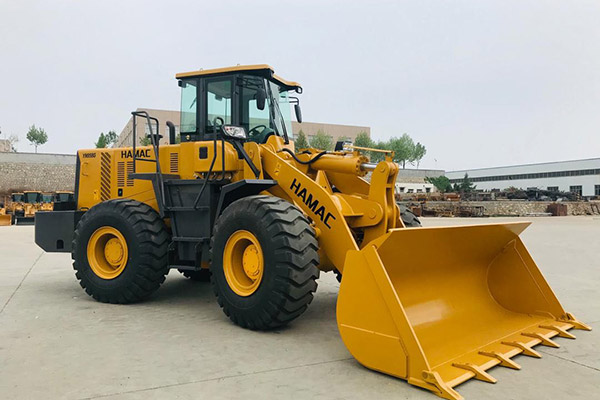

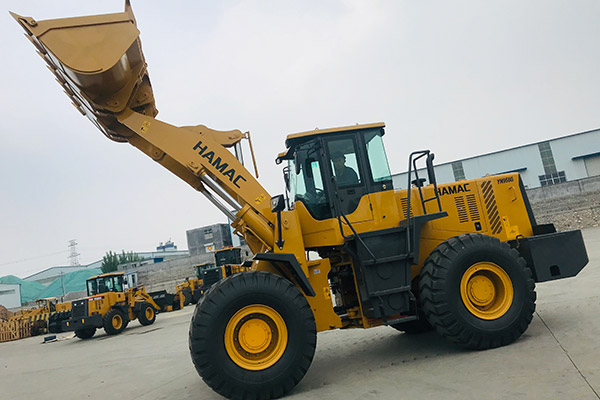

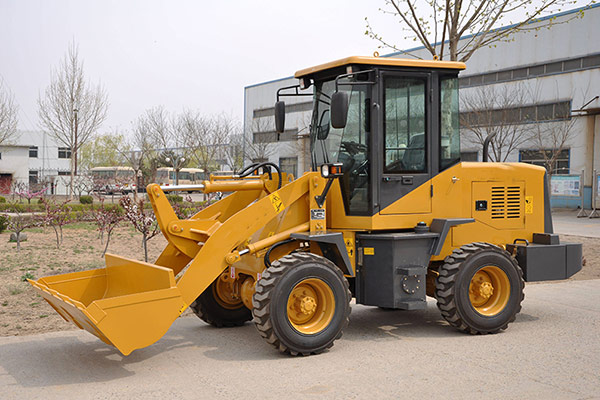

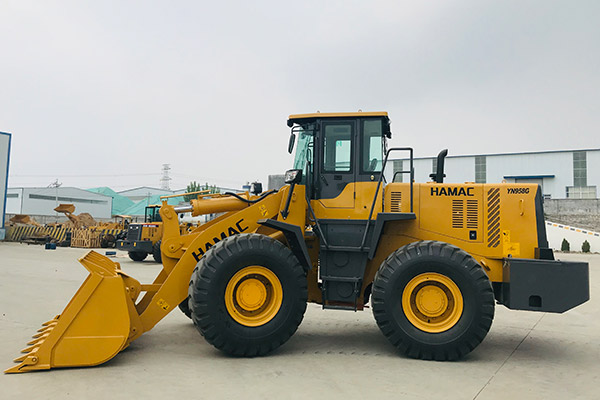

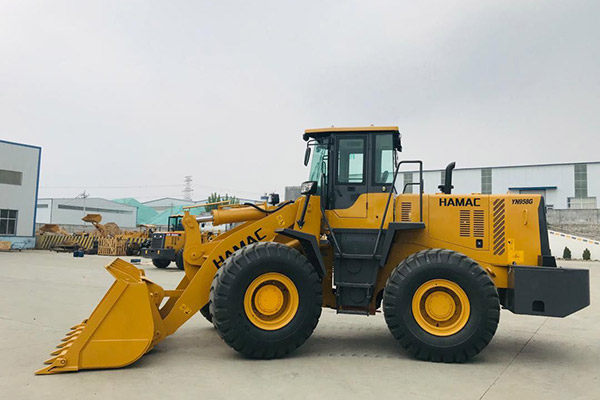

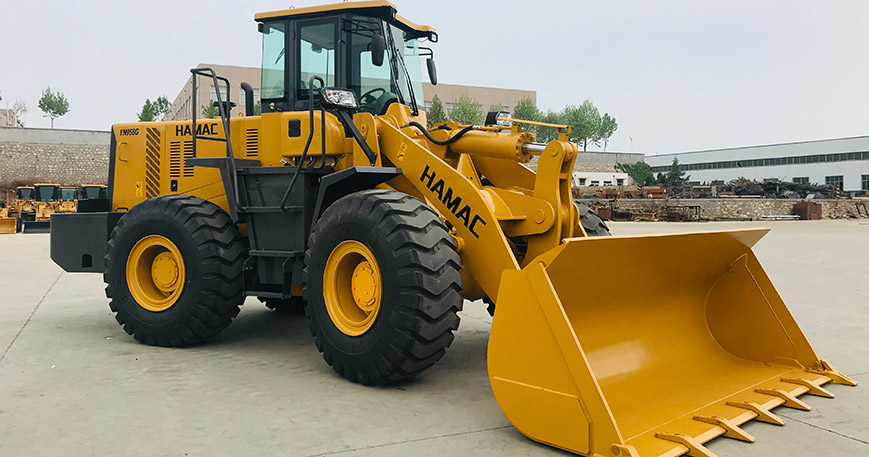

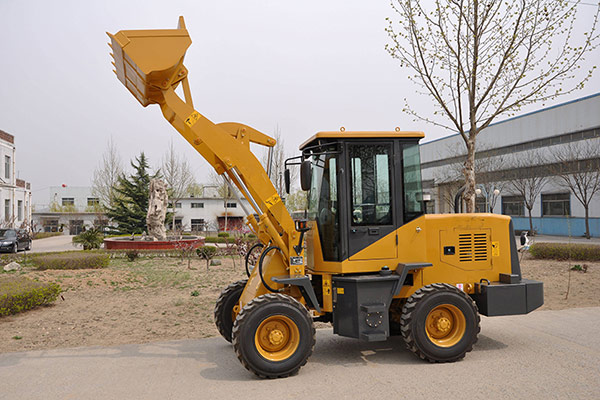

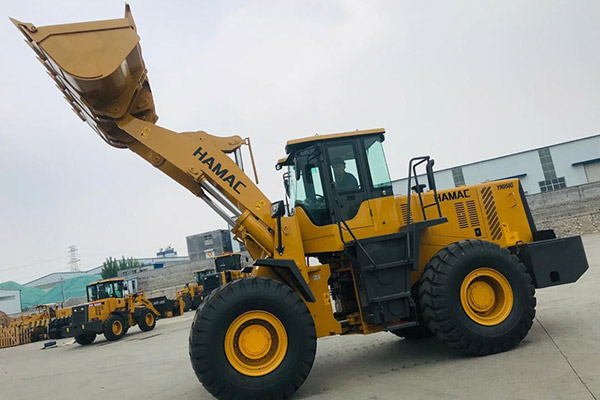

Detailed Photos
Performance
1. Powerful engine that saves labor and energy.
2. Load sensing hydraulic steering gear and central articulated frame.
3. Single pipe type hydraulic 4-wheel brake.
4. High-quality tire operating a long time in various environment.
5. High degree of safety for the cab, large space.
Specification
Model | ZL-18 | ZL-20 | ZL-30 | ZL-32 |
Max dumping height | 2700mm | 3200mm | 3250mm | 3250mm |
Max dumping distance | 760mm | 1100mm | 1200mm | 1200mm |
Rate Weight(kg) | 1800 | 2000 | 3000 | 3000 |
Bucket capacity(m3) | 0.5-0.6 | 1.03 | 1.7 | 1.3 |
Distance between axles | 2000mm | 2140mm | 2760mm | 2760mm |
Tread | 1400mm | 1480mm | 1800mm | 1800mm |
Overall dimensions(L*W*H) | 5100*1720*2700 | 5850*2550*2700 | 5100*1720*2700 | 6450*2090*2930 |
Engine model | LION LN490KC | WEICHAI4102 | DEUTZ TD | 4108 |
Rated power | 39KW | 47KW | 135KW | 83KW |
Working pressure | 16Mpa | 27.5Mpa | 27.5Mpa | |
Max flux | 50ml/r | 100ml/r | 100ml/r | |
Total weight | 3000kg | 9500kg | 6000kg | |
Grade ability | 25% | 25% | 25% | |
Min rotary radius | 4600mm | 5700mm | 5700mm | |
Time | 7s | 9s | 11s | 11s |
Max walking speed | 24km/h | 24km/h | 40km/h | 40km/h |
Max. breakout force | 23kn | 32kn | 138kn | 138kn |
