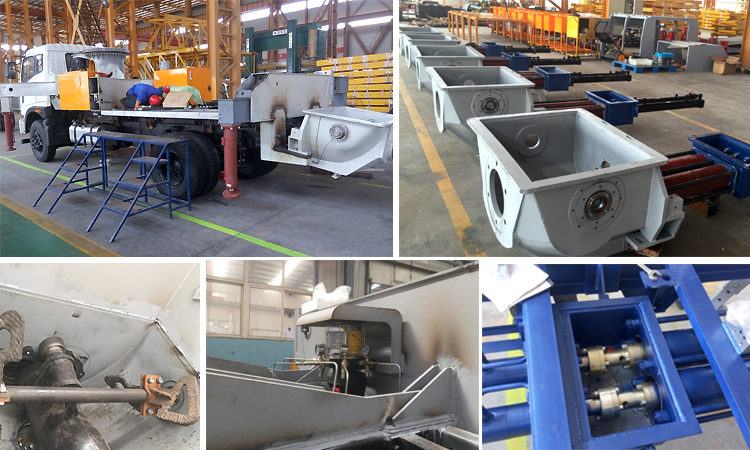

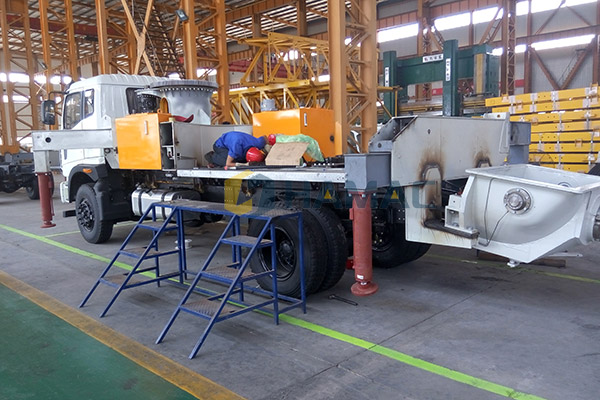

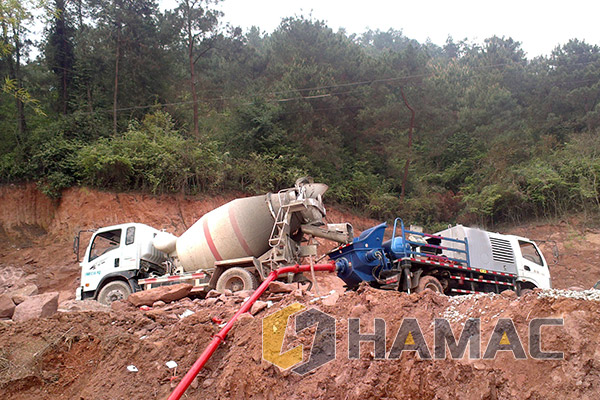

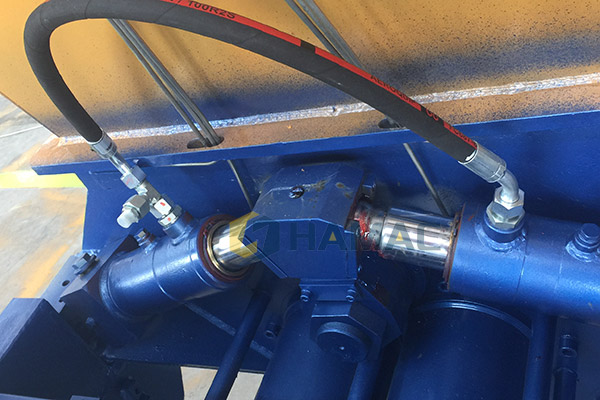

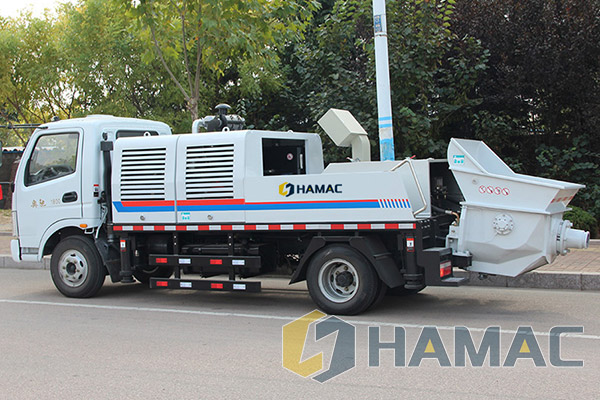

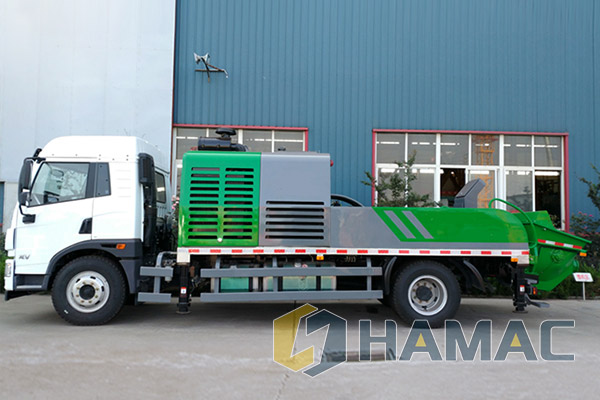

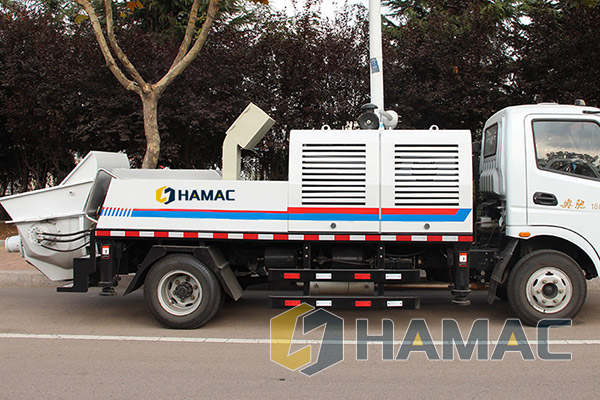

Detailed Photos
Performance
Power system: Adopt original VOLVO/DUETZ and LOVOL diesel engine;
Main oil pump: Adopt HAWE series or Rexroth series from German, Kawasaki series from Japan. Mainly we use variable displacement piston pump to make sure the stable reliable working performance. Because of the pressure exceeding and overflow function, the main oil pump and diesel engine will be protected successfully;
Chassis: We adopts the Dongfeng chassis from the biggest truck factory in China. Its quality is reliable. Its emission standard is National IV.

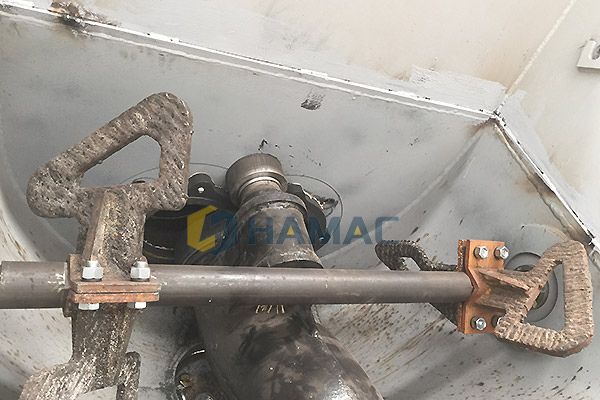

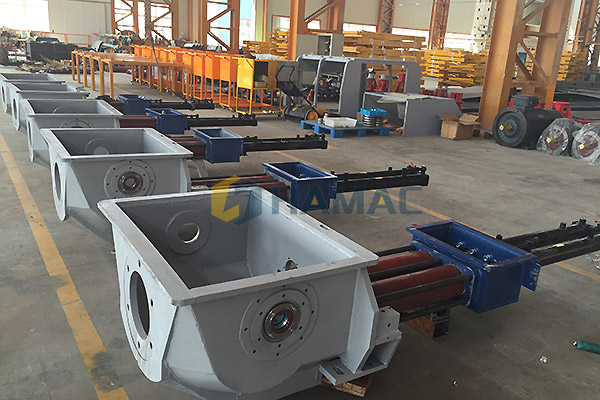

The high material sucking technology: Optimized inner wall of hopper, smooth S tube valve, and accurate blade angle ensure the concrete is sucked into the concrete cylinder, improving the efficiency to more than 90%;
Large diameter of concrete delivery cylinder: The diameter of concrete delivery cylinder is enlarged to 230mm, reduce the upward and backward wearing times of concrete pistons, lengthened the service lift of concrete pistons.
High quality wear resistance parts: Integration of German technology and advanced technology, ken mechanical friction rotating components’ service life greatly improved, with unique lubricating device, mechanical rotation reaches maintenance-free state.
Specification
ITEM | UNIT | SPECIFICATION | |||

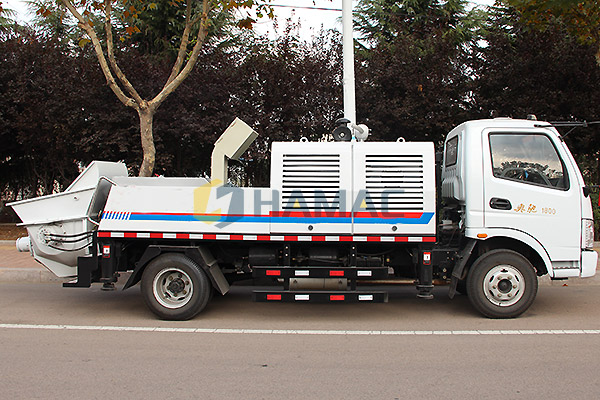

Model | HMC5141THB | ||||
Driving system | Chassis brand | FOTON DAIMLER, left drive | |||
Chassis model | BJ1113VFPHG-RA | ||||
Fuel type | Diesel | ||||
Displacement/Power | L/KW | 6.7/156 | |||
Displacement standard | Euro III | ||||
Tyre model | 8.25R20 | ||||
Axle base | m | 5.0 | |||
quantity of axles | 2 | ||||
Max. driving speed | Km/h | 90 | |||
Front wheel base | mm | 1900 | |||
Back wheel base | mm | 1800 | |||
Min. turning radius | m | 9 | |||
Pumping system | Brand of diesel engine | DEUTZ Brand | |||
Diesel engine model | BF6M1013-25T3R | ||||
Diesel engine power | KW | 186 | |||
Driving mode | Hydraulic driving | ||||

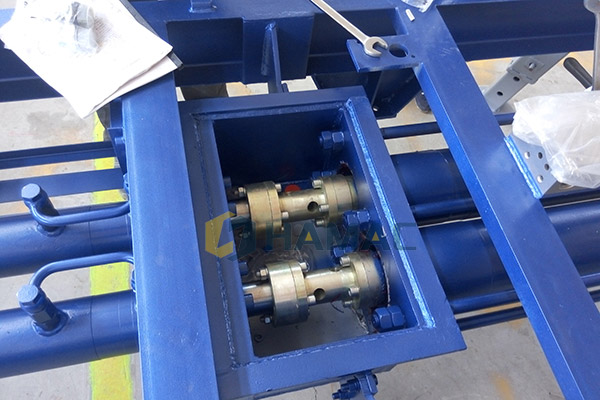

Oil cylinder inner diameter × stroke | mm | Ф180×Ф125×1800 | |||
Concrete cylinder inner diameter × stroke | mm | Ф230×1800 | |||
Oil pressure of system | MPa | 32 | |||
Switch of H-pressure and L-pressure | Equipped | ||||
Fuel tank capacity | L | 290 | |||
Oil tank capacity | L | 600 | |||
Cooling mode of hydraulic system | Fan cooling | ||||
Max. theoretical capacity | m3/h | H-pressure | 55 | ||
m3/h | L-pressure | 100 | |||
Pumping distance (H-pressure) | Max. Horizontal | m | 125A pipe | 880 | |
Max. Vertical | m | 125A pipe | 220 | ||
Hopper capacity | m3 | 0.6 | |||
Feeding height | mm | ≤1500 | |||
Concrete slump | cm | 14~23 | |||
Max. aggregate diameter | mm | Crushed stone: 40 / Pebble: 50 | |||
Valve | S Valve | ||||
Water pump for cleaning | Equipped | ||||
Concrete pipe cleaning mode | Water cleaning | ||||
Water tank capacity | L | 400 | |||

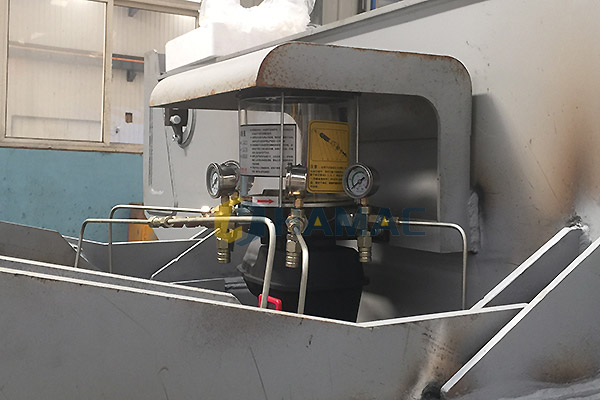

Lubrication mode | Automatic | ||||
Overall dimension | Length (mm)*Width (mm)*Height (mm) | mm | 9195*2458*2623 | ||
Full-load total weight | Kg | 13500 |
Note: Our products are updated constantly, if there is any data discrepancy, please refer to the actual product.
