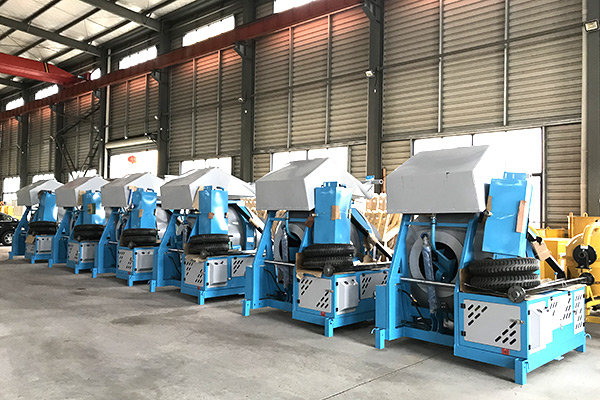

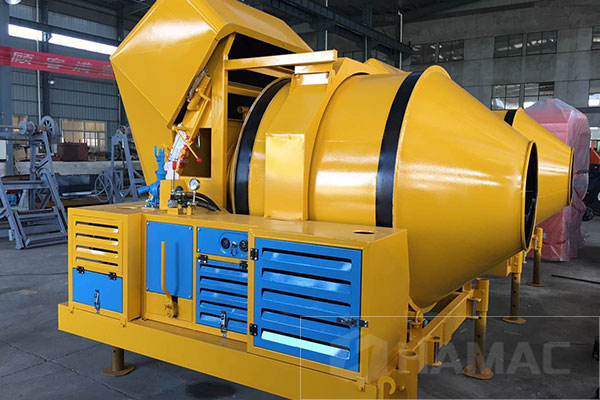

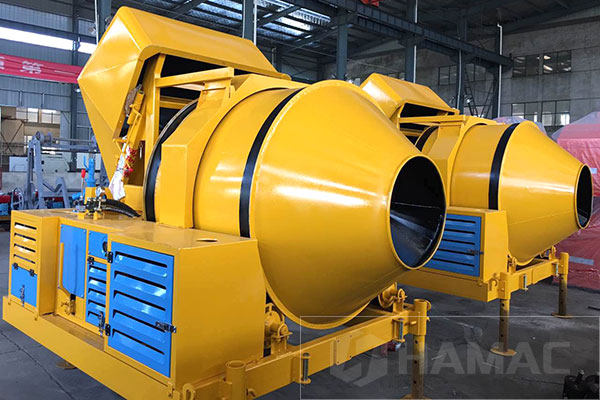

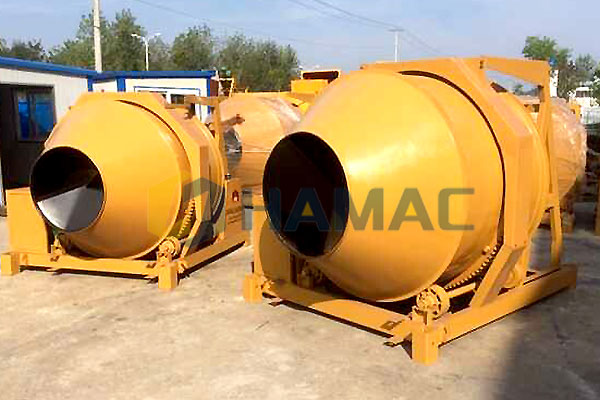

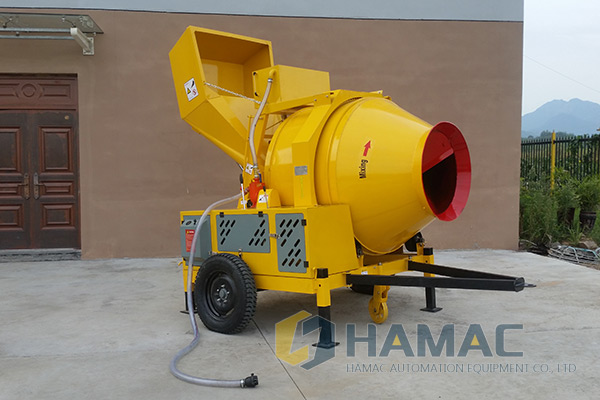

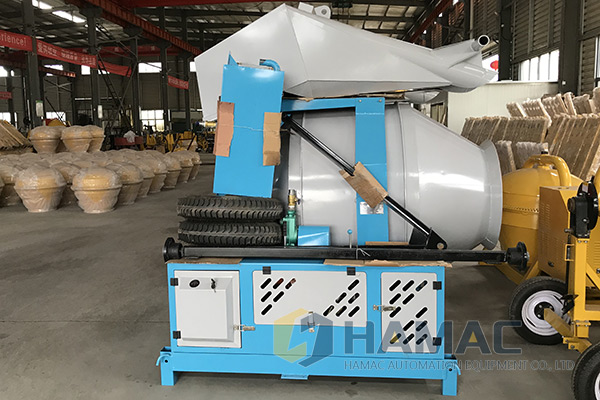

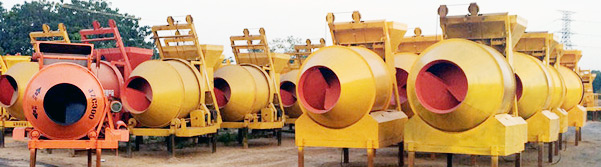

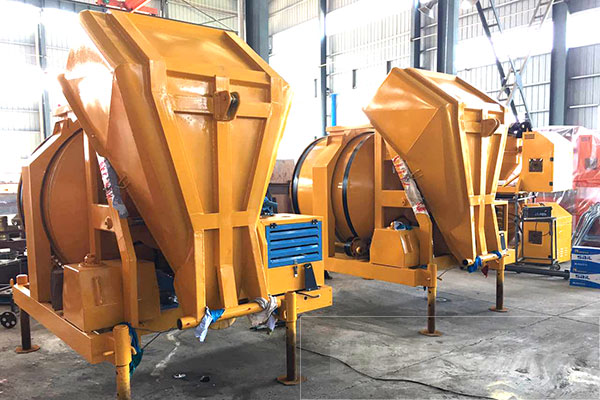

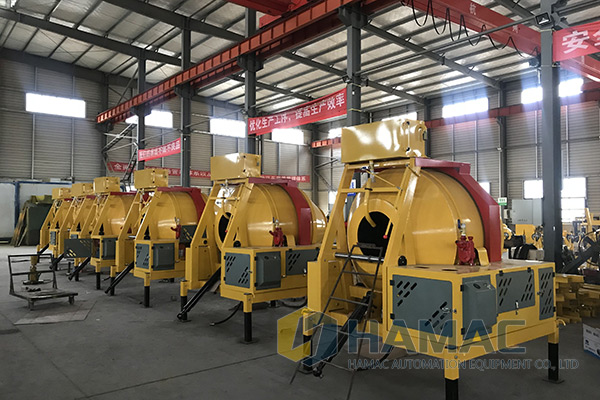

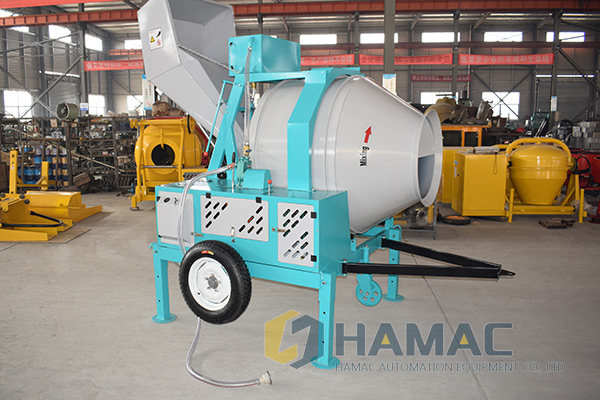

Detailed Photos
Performance

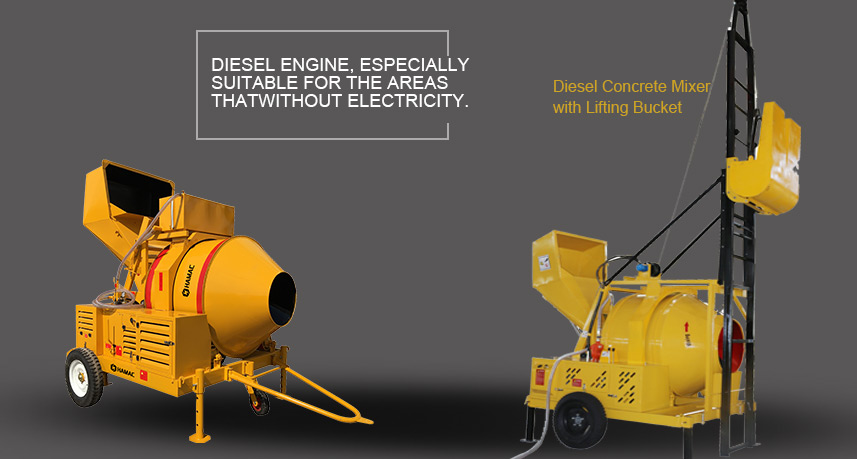

1. Diesel engine, especially suitable for the areas thatwithout electricity.
2. Can be easily moved between different construction sites.
3. Easy operation; stable performance; Low energy consumption.
4. Reasonable structure, higher reliability, mixing evenly with high productivity.
Specification
Model | JZR350DW | JZR350DH | JZR500DH |
Discharging Capacity(L) | 350 | 350 | 500 |
Charging Capacity(L) | 560 | 560 | 800 |
Productivity(m3/h) | 10-14 | 10-14 | 20-22 |
Maximum Size of Aggregate(mm) |
60 | 60 | 80 |
Hopper Lifting | Hydraulic system | Hydraulic system | Hydraulic system |

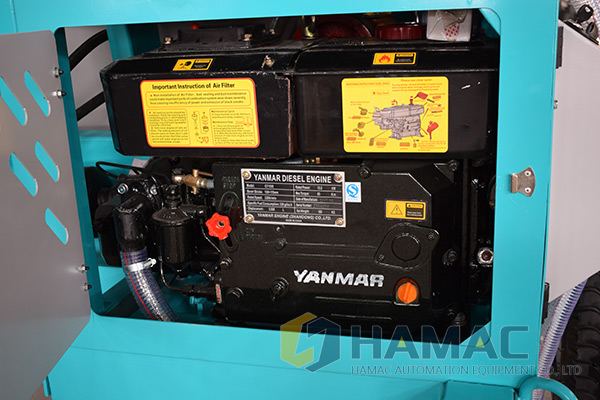

Diesel Engine Power(kw) | 13.2 | 13.2 | 16.2 |
Power of Water Pump(kw) | 0.75 | 0.75 | 2.2-3 |
Accuracy of Water Supply | Error≤2﹪ | Error≤2﹪ | Error≤2﹪ |
Dimensions in Container (mm) |
2750×2200×2400 | 2300×1900×2500 | 2300×3300×2500 |
Overall Weight (kg) | 1350 | 1400 | 2300 |
Diesel Concrete Mixer with Lifting Bucket:
Model | JZC350-DHL |
Discharging Capacity | 350L |
Loading Capacity | 560L |
Lifting Bucket Capacity | 200L |
Productivity | 10-14m3/h |
Bags of Cement per batch | 2 Bag Cement |
Drum Thickness | 6mm |
Drum Size | Φ1460×1760mm |
Rated Lifting Height | 17m |
Engine Option |
Water-cooled JIANGDONG Diesel Engine ZS1100(16HP) |
Water-cooled CHANGFA Diesel Engine CF1100(16HP) |
|
Water-cooled CHANGCHAI Diesel Engine ZS1100(16HP) |
|
Displace of Hydraulic Pump | 25ml/r |
Max. Size of Aggregate | 60mm |
Drum Rotation Speed | 14rpm |
Total Weight | 2300kg |
Overall Size(L*W*H) | 3300×2300×3100mm |
Packing Size(L*W*H) | 2300×2000×2500mm |
Container Loading Plan | 2 Sets/20GP, 5 Sets/40HQ |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
