Concrete Transit Mixers
INTRODUCTION
Concrete mixer truck consists of special device for automobile chassis and concrete mixing and transporting, always keeping the mixing drum rotating in the transport process and it is the special vehicle with integration of mixing and transport. We specialized in manufacturing the small concrete mixer truck working for the narrow working environments, including underground coal mine, reclamation construction, high-speed rail construction, township pavement construction, rural housing construction; main specifications: 4m³, 6m³, 8m³,10 m³ and so on.
Hot Sale in stock: 2m3 Concrete mixer Truck - HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck - 6m3 Concrete Mixing Truck - 8m3 Concrete Mixing Truck - 10m3 Concrete Mixing Truck - HMC1.5 Self-loading Concrete Mixer - HMC4.0 Self-loading Concrete Mixer Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

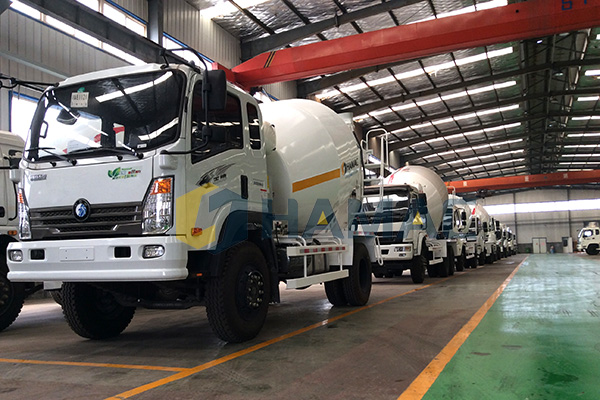

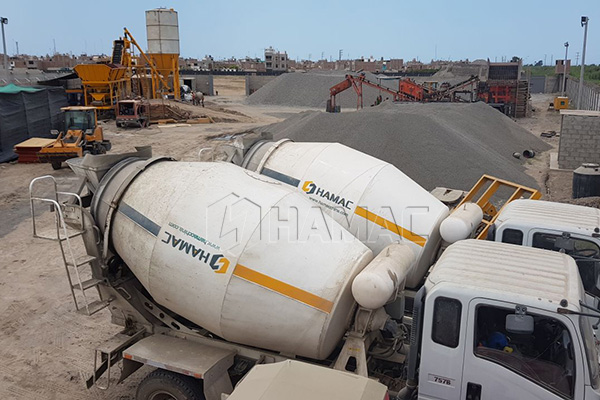

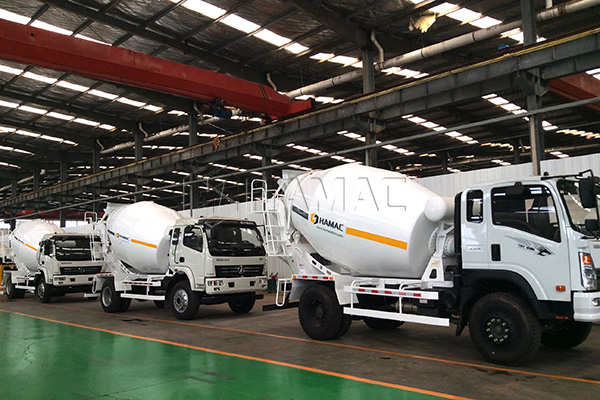

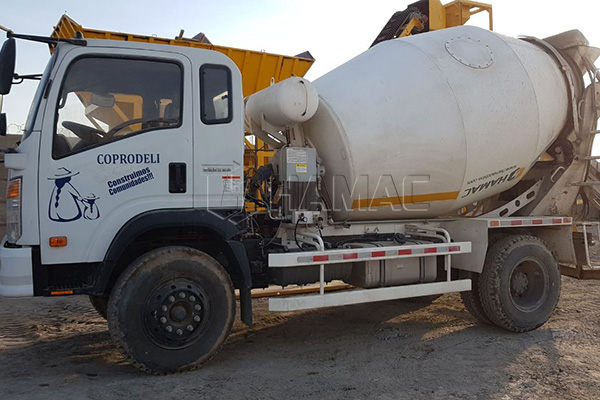

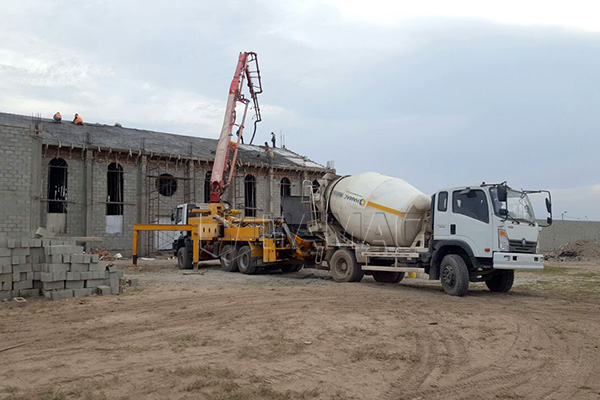

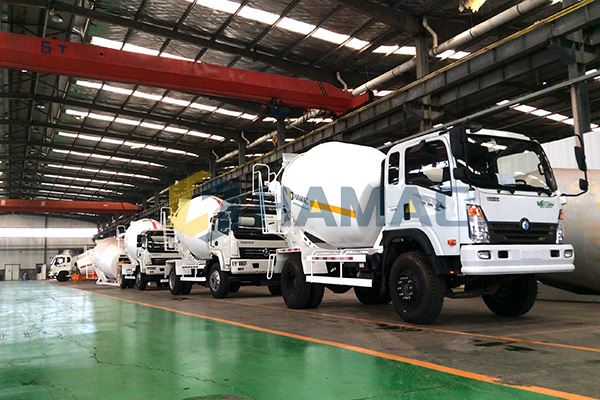

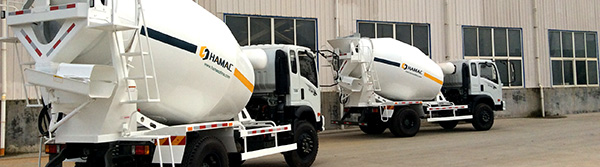

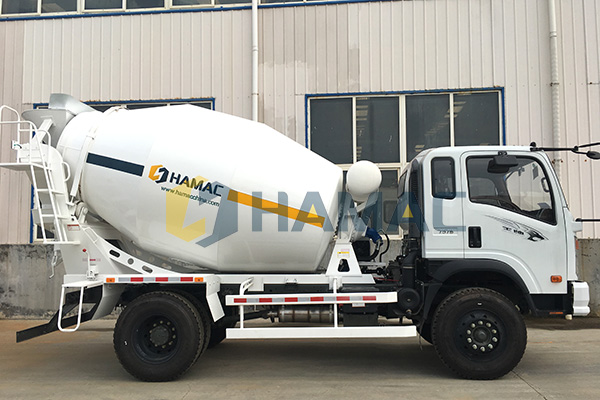

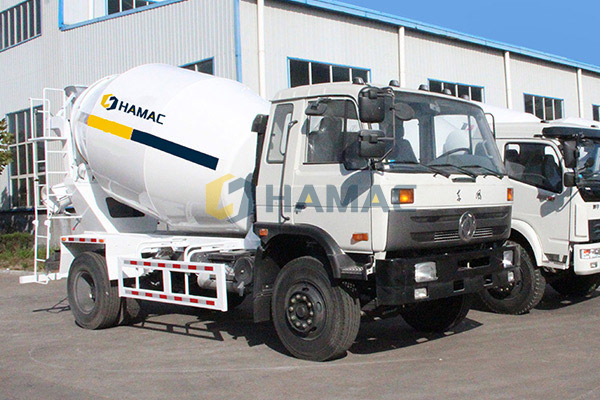

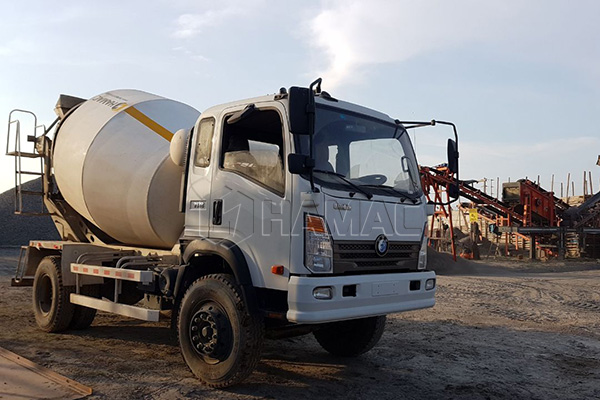

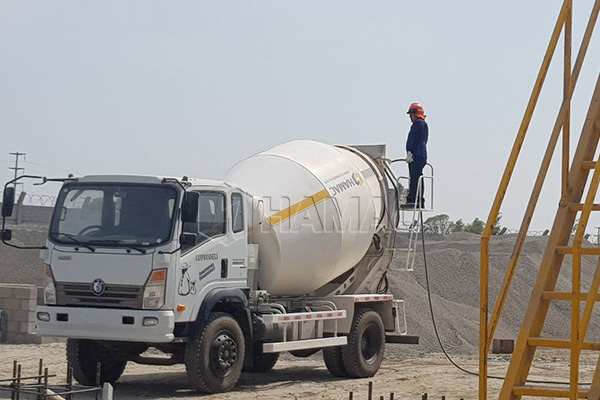

Detailed Photos
Performance
1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;

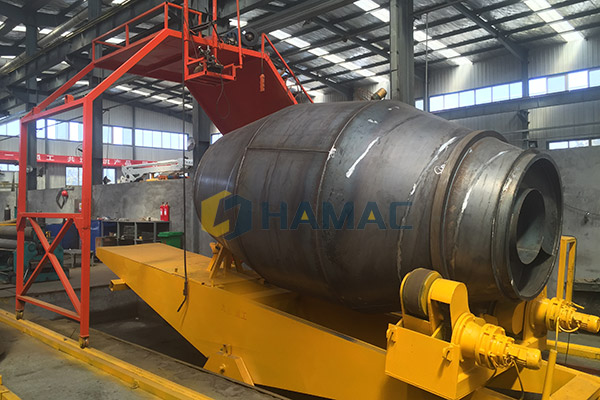

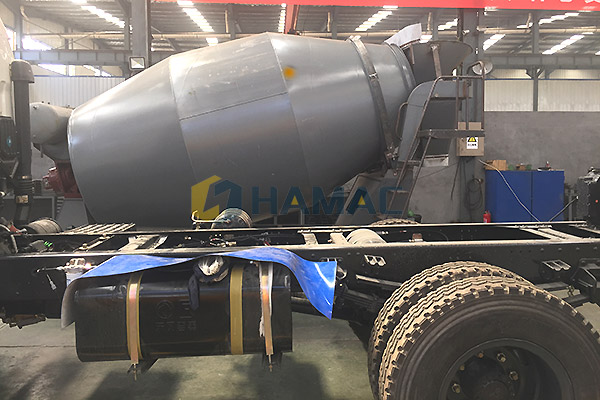

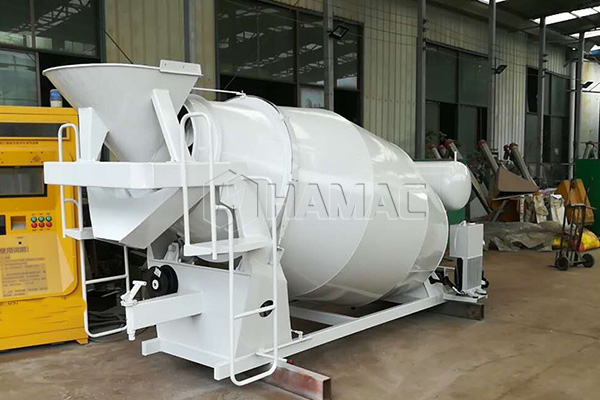

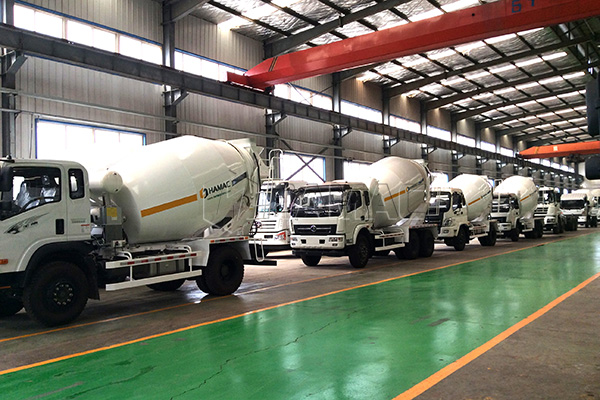

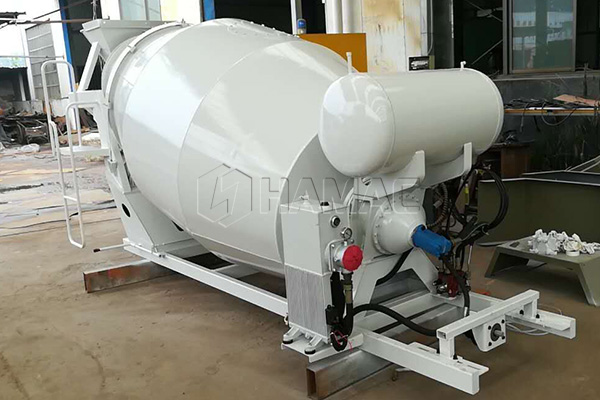

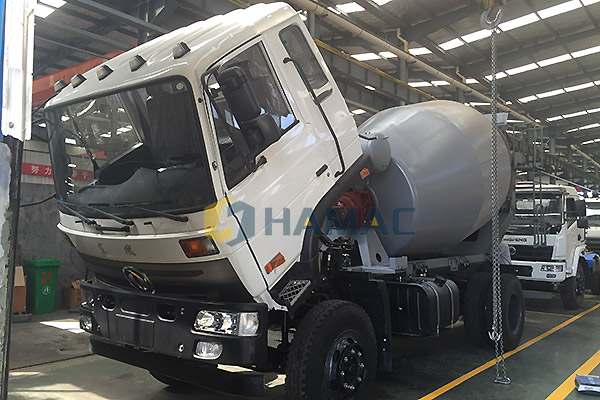

Manufacturing Process
Specification
| Capacity | 4m³ | 6m³ | 4m³ | 6m³ | |
| Chassis brand | FAW/FOTON/DFAC | Dimension (mm） | 6880*2412*3500 | ||
| Wheel base (mm) | 3650 | 4100 | Feeding Speed (m³/min) | ⪖1.5 | ⪖2 |
| Track Front (mm) | 1725 | Discharging speed (m³/min) | ⪖1 | ⪖1.5 | |
| Track Rear (mm) | 1670 | Drum rotation speed (r/min） | 0-16 | ||
| Tire Type | 9.00-20,9.00 R20 | Rest Rate | ⪕0.1% | ||
| Engine Emission standard | B17691-2005 National IV, GB3847-2005 | ||||
| Engine brand | YUCHAI | ||||
| Power | 130HP | ||||
| Gearbox | Italy Interpump | ||||
| Motor | Italy Interpump | ||||
| Hydraulic Pump | Italy Interpump | ||||
| Capacity | 8m3 |
| Chassis brand | FAW/FOTON/DFAC |
| Chassis Demission（mm） | 8300×2470×2850 |
| Wheelbase（mm） | 3850+1300,4150+1300 |
| Number of axles | 3 |
| Track front（mm） | 1980 |
| Track rear（mm） | 1860/1860 |
| Front overhang（mm） | 1250/2300 |
| Rear overhang （mm） | 1250/2850 |
| Approach angle/Departure angle | 34/15,34/13 |
| Tyre Number | 10 |
| Tyre Size | 10.00-20,11.00-20 |
| Plate Spring Number | 9 10 |
| Fuel | Diesel |
| Engine emission standard | National IV |
| Engine brand | YUCHAI |
| Power | 215kw/290HP |
| Engine Rated speed（r/min） | 2800 |
| Engine Idle speed（r/min） | 700~750 |
| Clutch | Biplate Dried constant joint |
| Transmissions type | Shaft drive transission |
| Drive mode | Rear Wheel Drive |
| Turning form | Hydraulic power steering |
| Service brake | Air-brake |
| Parking braking | Air brake braking |
| Max. speed(km/h) | 85 |
| Concrete mixing truck Demission（mm） | 8700,9550×2500×3760,3880 |
| Mixing volume（m³） | 8 |
| Feeding rate（m³/min） | ≥2 |
| Discharging rate（m³/min） | ≥1.5 |
| Drum rotation speed（r/min） | 3~9 |
| Discharging remnant rate | ≤0.1% |
| Water supply mode | Air pressure supply |
| water tank volume（L） | 200 |
| Radiator | 24v air-cooled |
| Reduction box | Fuxin |
| Motor | Interpump |
| Hydraulic pump | Interpump |
| Model Name | Technical data | ||||
| Unit | 9 m3 | 10m3 | |||
| Vehicle data | Model | ZZ1257N4048W/ZZ1256N4046C1 | ZZ1257N4048W/ZZ1256N4046C1 | ||
| Total Length | mm | 9800 | 9800 | ||
| Total Width | mm | 2490/2490 | 2490/2490 | ||
| Total Height | mm | 3830 | 3830 | ||
| Chassis Model | HOWO ZZ1257N4048W/ ZZ1256N4046C1 | HOWO ZZ1257N4048W/ ZZ1256N4046C1 | |||
| Overall Weight | kg | 25000 | 25000 | ||
| Curb Weight | kg | 15650 | 15650 | ||
| Wheel Base | mm | 4025+1350 | 4025+1350 | ||
| Front Tread | mm | 2022 | 2022 | ||
| Rear Tread | mm | 1830 | 1830 | ||
| Tyre Model | 11.00-20,12.00-20 | 11.00-20,12.00-20 | |||
| Front Overhang | mm | 1500 | 1500 | ||
| Rear Overhang | mm | 2980 | 2980 | ||
|
Min. Turning Radius |
m | 10.1 | 10.1 | ||
| Max. Traveling Speed | Km/h | 86/97 | 86/97 | ||
| Steering Device(GERMANY ) | ZF8098 | ZF8098 | |||
| Oil Consumption per 100 km(under limited conditions) | L | 34 | 34 | ||
| Engine | Engine Model | WD615.95(E) | WD615.95(E) | ||
| Cylinder Number and Arrangement | Linear 6-cylinder | Linear 6-cylinder | |||
| Engine max. output power | kw | 247/2200 | 247/2200 | ||
| Max. Engine Torque | N.M | 1420/1100 | 1420/1100 | ||
| Working Device | Mixing Drum Volume | m3 | 17.05 | 17.05 | |
| Mixing Cubage | m3 | 10 | 10 | ||
| Mixing Drum Slope Angle | % | 12 | 12 | ||
| Mixing Drum Rotating Speed | r/min | 0-14 | 0-14 | ||
| Feeding Speed | M3/min | ≥3.5 | ≥3.5 | ||
| Discharging Speed | m3/min | ≥1.5 | ≥1.5 | ||
| Slump | mm | 100~230 | 100~230 | ||
| Surplus Rate | % | <0.5 | <0.5 | ||
| Water Tank Capacity | L | 260 | 260 | ||
