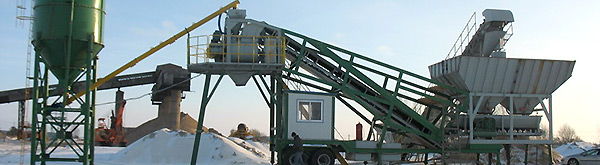

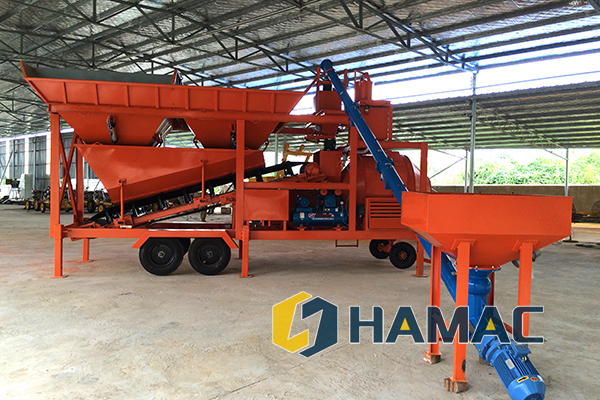

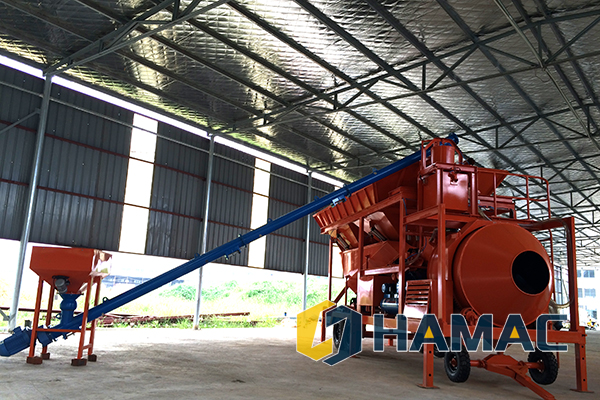

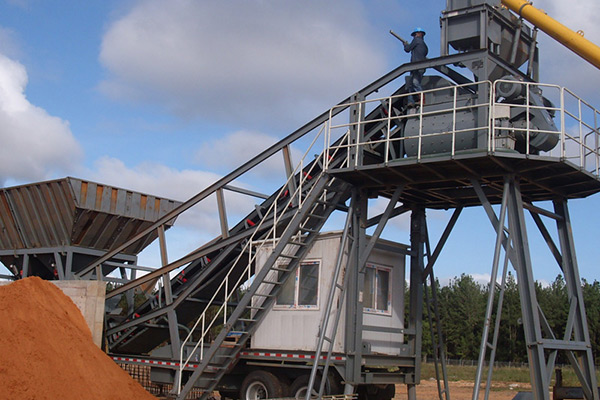

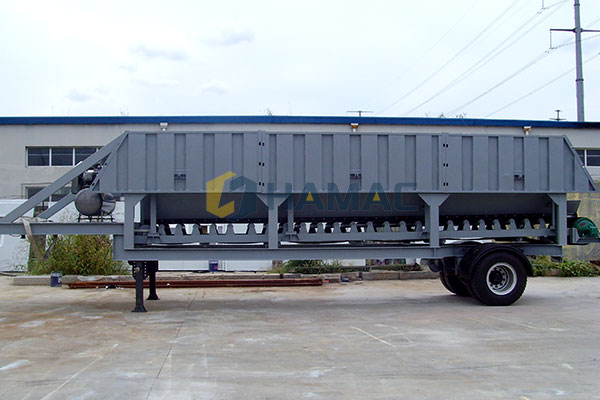

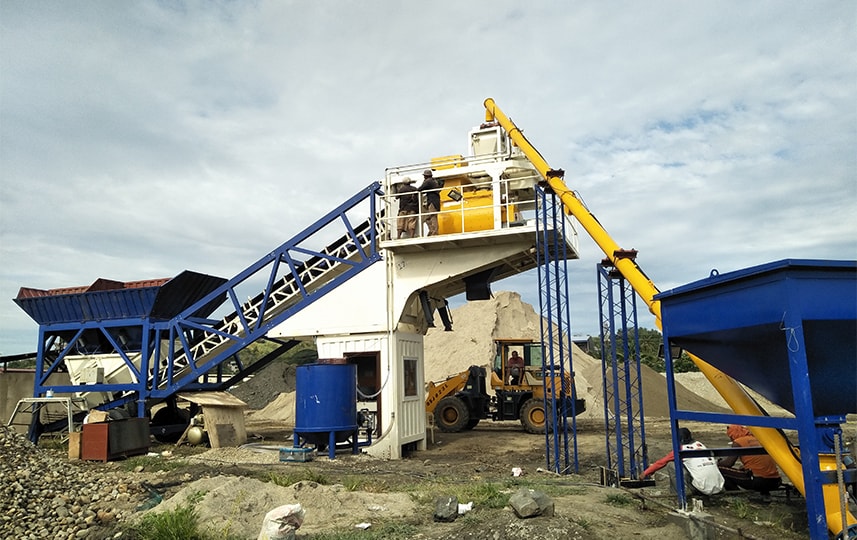

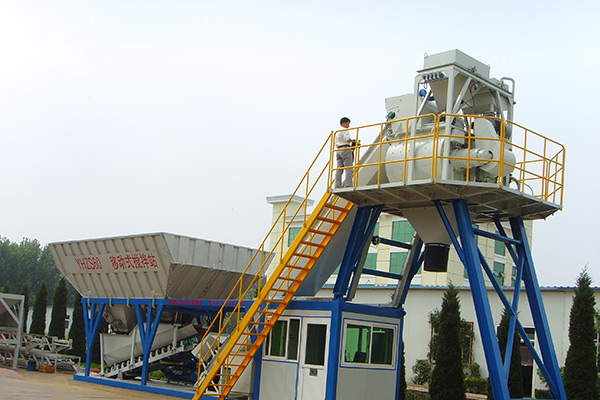

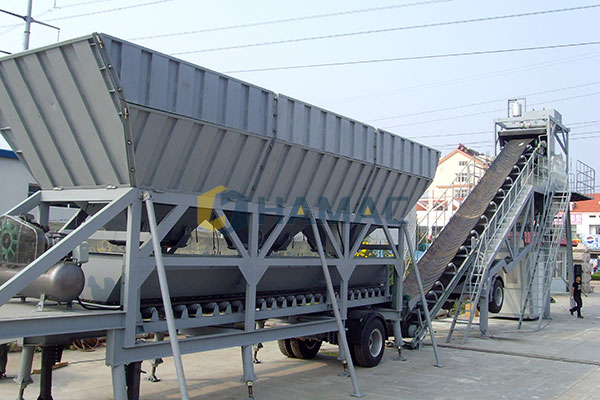

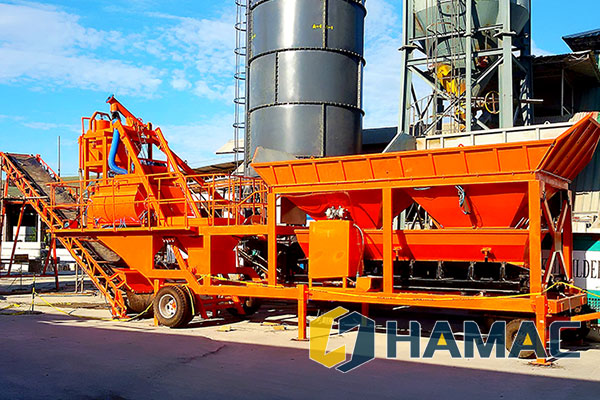

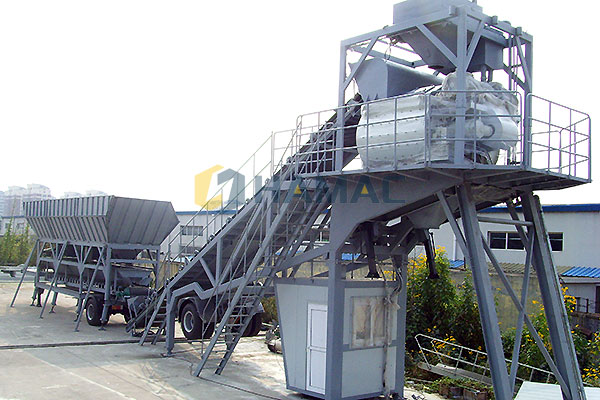

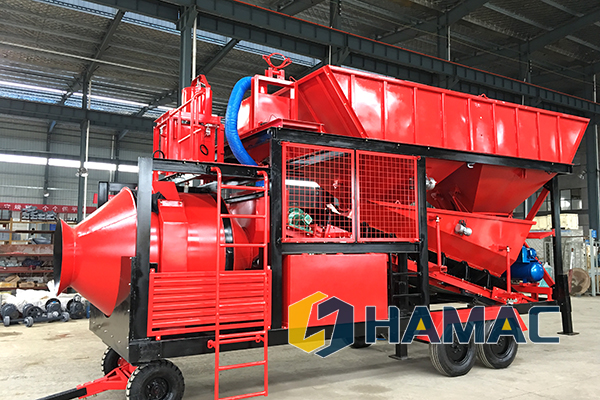

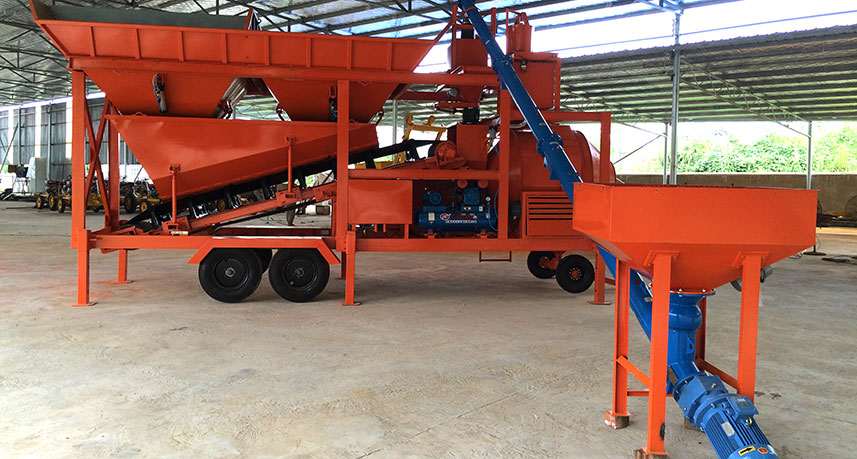

Detailed Photos
Performance

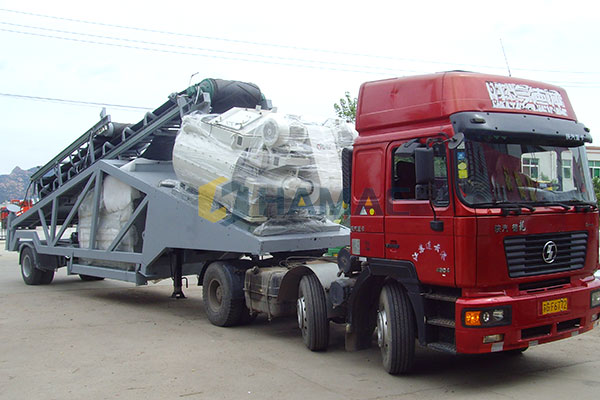

1. Easily to be moved to different working sites;
2. It will take short time to be installed and commissioning;
3. It will save the cost for purchasing the mixing trucks and make the transport time shorter and operation cost lower;
4. The concrete quality will not be affected because of the long distance transportation;
Specification
Parameter | Model | |||||
YHZM20 | YHZS25 | YHZS35 | YHZS50/60 | YHZS75 | YHZS100 | |
Theoretical Productivity(m³/h) | 20 | 25 | 35 | 50/60 | 75 | 100 |
Mixer | JZC500 | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
Batching System | PLD800 | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 |
Discharging Height(mm) | 1200 | 4000 | 4000 | 4000 | 4000 | 4000 |
The max. diameter of the aggregates (mm) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) | 60(80) |
Transportation dimension(L*W*H)mm | 7700*2350*3900 | 13105*3020*4398 | 15282*3070**4280 | 16241*3485*4167 | 16711*3485*4314 | 18572*2500*4400 |
The Speed km/h | 10 | 15 | 15 | 15 | 15 | 15 |
Turning Radius (m) | 10 | 10 | 10 | 10 | 10 | 10 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
