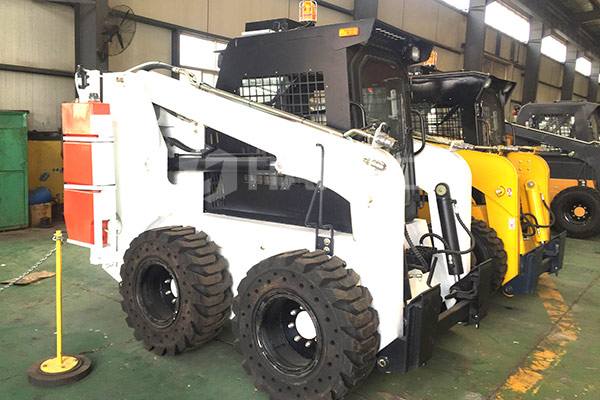

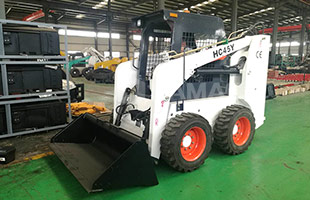

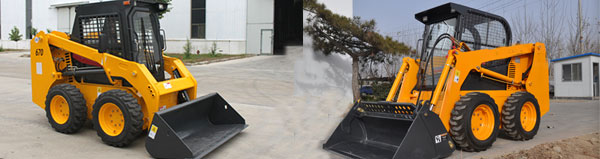

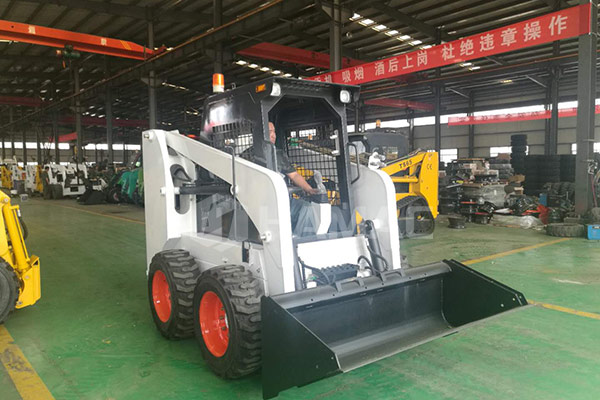

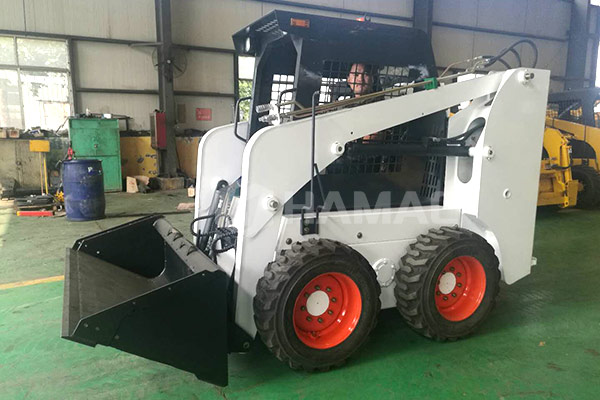

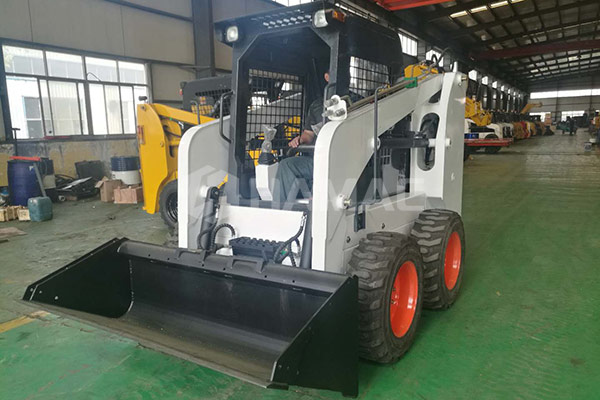

Detailed Photos
Performance
1. High configuration for main parts. Main pump is Germany Rexroth high pressure viable plunger pump. The travel motor is Rexroth single-speed or two-speed motor. The engine is famous brand such as XINCHAI, Kubota or Perkins. The key hydraulic parts like gear pump, multi-way, pilot valve, leveling valve etc. are original products imported from Europe and America.
2. It adopts plate welding arm which has high loading capacity and good integral rigidity, long-term durability and reliability. The bucket cylinder can reach 100/50, and the maximum dig-up capacity is over 3 tons. The deluxe cab is very nice-looking and comfortable by using the blow molding interior decoration.
3. The pilot operation structure is our company patented technique. The controlling distance can be adjusted for different drivers’ requirement. The rear-mounted radiator uses rotational structure, which heavily improve the maintenance ability.

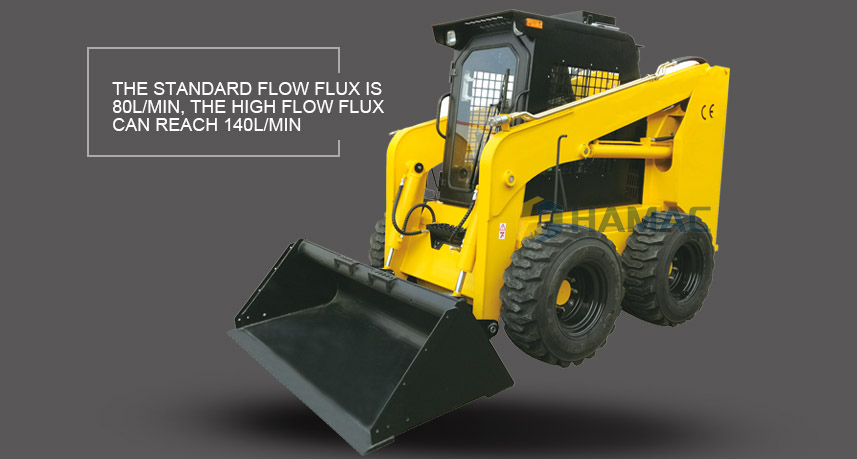

4. B series skid steer loader can provide high flow flux for attachments. The standard flow flux is 80L/min, the high flow flux can reach 140L/min. It can meet the demands of all the attachments.
Skid Steer Loader Attachments
Skid steer loader attachments offers an extensive, ever-growing line of high-quality skid steer attachments for construction and farming equipment.
-
- Combination Bucket
-
- Pallet Forks
-
- Dozer Blade Grader Leveler
-
- Snow Pusher
-
- Grapple Bucket
-
- Grapple Rake
-
- Bale Squeeze
-
- Grapple Rock Bucket
-
- Hay Spear
-
- Mixer
-
- Digging Backhoe
-
- Utility Digging Backhoe
-

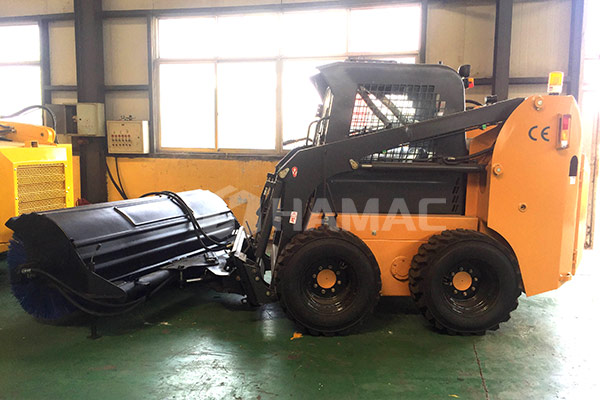

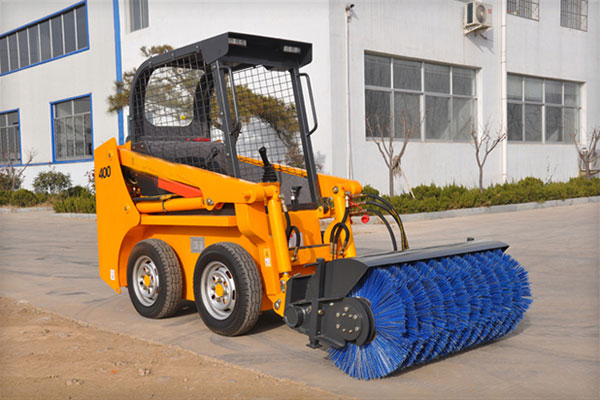

- Pick Up Broom
-
- Tree Spade

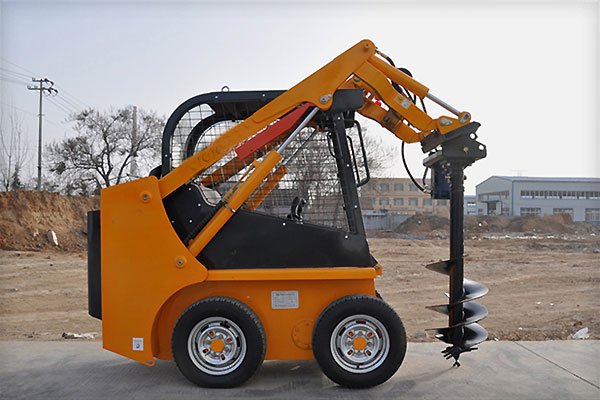

From drive units to fully accessorized bundles, Skid Steer Solutions has all your skid steer auger needs covered. Have a look at each of our auger options today and be amazed at everything a skid steer auger attachment can do for you.
Specification
Model | HC65B | HC75B | HC100B | HC120B |
Operating Load (kg) | 950 | 1050 | 1200 | 1500 |
Max. Speed (km/h) | 12 | 12 | 12/18 | 12/18 |
Hydraulic flow (L/min) | 80 | 80 | 80 | 80 |
Max. Working Flow (L/min) | 120 | 140 | 140 | |
Tire Model | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 |
Rated Power (kW) | 55 | 55 | 74 | 103 |
Fuel tank Volume (L) | 75 | 75 | 90 | 90 |
Self Weight (kg) | 3350 | 3500 | 3550 | 3600 |
Bucket Volume (m³) | 0.5 | 0.5 | 0.55 | 0.55 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
Structure Data:
Main data Model | HC65B | HC75B | HC100B | HC120B |
Overall operating height (mm) | 4000 | 4070 | 4070 | 4070 |
Height to bucket hinge pin (mm) | 3100 | 3150 | 3150 | 3150 |
height to top of cab (mm) | 2160 | 2160 | 2160 | 2160 |
Height to bottom of level bucket(mm) | 2933 | 2983 | 2983 | 2983 |
Overall length without bucket(mm) | 2750 | 2880 | 2880 | 2880 |
overall length with bucket(mm) | 3490 | 3580 | 3580 | 3580 |
Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 |
Dumping height(mm) | 2400 | 2450 | 2450 | 2450 |
Dumping reach(mm) | 750 | 700 | 700 | 700 |
Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 |
Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 |
Wheelbase(mm) | 1085 | 1115 | 1185 | 1185 |
Ground clearance(mm) | 205 | 205 | 205 | 205 |
Angle of departure(° ) | 20 | 20 | 20 | 20 |
Front turning radius without bucket(mm) | 1204 | 1250 | 1278 | 1278 |
Front tuning radius(mm) | 2030 | 2112 | 2144 | 2144 |
Rear tuning radius(mm) | 1706 | 1774 | 1857 | 1857 |
Rear axle to bumper (mm) | 1082 | 1082 | 1082 | 1082 |
Tread width, centerline to centerline (mm) | 1500 | 1500 | 1500 | 1500 |
Width (mm) | 1880 | 1880 | 1880 | 1880 |
Bucket width (mm) | 1880 | 1880 | 1880 | 1880 |
