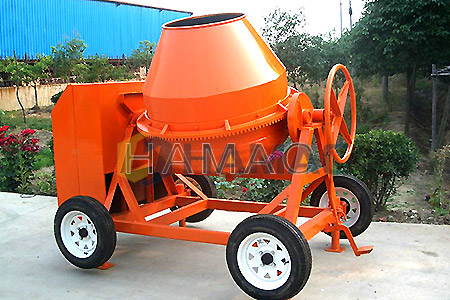

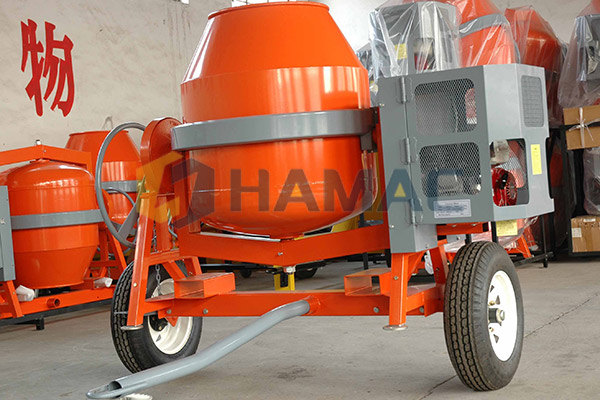

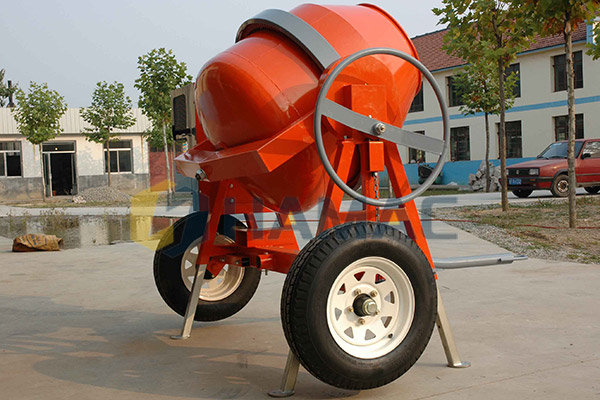

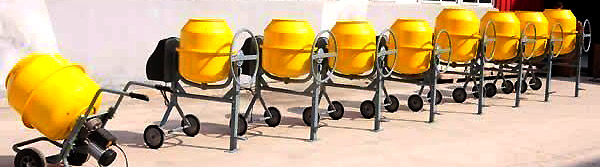

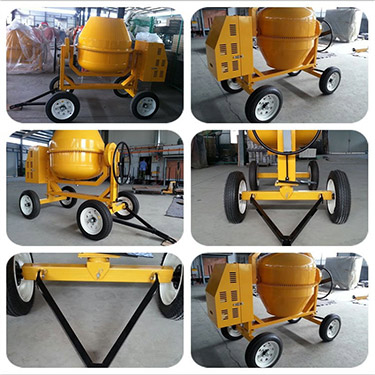

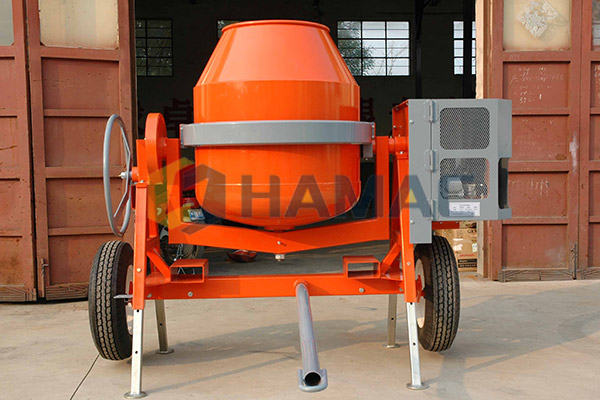

Detailed Photos
Performance
1.All-steel construction, Mini Concrete Mixer has long life span.
2.Large wheels, It's easy to be moved to different places;
3.Diesel/gasoline/electric motor, optional as customers' requirement.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface, colors as your request. Mini Concrete Mixer is rust- proof.
6.EPA certificated wheels, wheels size:520mm.
7.Guarantee time: six months warranty
8.water supply mode: direct input
9.Discharging:semi-automatic
Manufacturing Process
Detailed Photos |
packing and shipping |
![]() |
![]() |
Specification
Model | Capacity | NW | RPM of Drum | Productivity | Engine | Package/mm(2set) | QTY(set) | |||||
L | KG | m³/H | RPM | Diesel | Gasoline | Electric Motor | Voltage/Hz | 40"HP | 20"GP | |||
HA260 | 260 | 250 | 18 | 6-10 | 1800 | 4HP | 5.5HP | 1.5KW | as your choice | 1810*800*992 | 52 | 24 |
HA300 | 300 | 270 | 20 | 8-12 | 1800 | 4HP | 5.5HP | 1.5KW | as your choice | 2040*880*1080 | 52 | 24 |
HA350 | 350 | 290 | 20 | 10-14 | 1800 | 6HP | 6.5HP | 2.2KW | as your choice | 2040*880*1155 | 52 | 24 |
HA400 | 400 | 330 | 20 | 12-16 | 1800 | 6HP | 6.5HP | 2.2KW | as your choice | 2040*880*1235 | 44/50 | 22 |
HA450 | 450 | 340 | 20 | 14-18 | 1800 | 6HP | 6.5HP | 2.2KW | as your choice | 2285*910*1250 | 44/50 | 22 |
HA500 | 500 | 350 | 17 | 16-20 | 1800 | 9HP | 9HP | 3KW | as your choice | 2285*910*1250 | 36 | 18 |
HA600 | 600 | 370 | 17 | 20-24 | 1800 | 9HP | 9HP | 3KW | as your choice | 2295*1095*1275 | 30/32 | 15 |
HB260 | 260 | 260 | 18 | 6-10 | 1800 | 4HP | 5.5HP | 1.5KW | as your choice | 1810*800*1100 | 36/38 | 18 |
HB300 | 290 | 290 | 18 | 8-12 | 1800 | 4HP | 5.5HP | 1.5KW | as your choice | 1950*9000*1220 | 36/38 | 18 |
HB350 | 350 | 325 | 20 | 10-14 | 1800 | 6HP | 6.5HP | 2.2KW | as your choice | 1950*900*1220 | 34/36 | 17 |
HB400 | 400 | 340 | 20 | 12-16 | 1800 | 6HP | 6.5HP | 2.2KW | as your choice | 1950*900*1220 | 34/36 | 17 |
HB450 | 450 | 350 | 20 | 14-18 | 1800 | 6HP | 6.5HP | 2.2KW | as your choice | 1950*900*1235 | 34/36 | 17 |
HB500 | 500 | 360 | 17 | 16-20 | 1800 | 9HP | 9HP | 3KW | as your choice | 2030*1000*1245 | 30/32 | 15 |
HB600 | 600 | 370 | 17 | 20-24 | 1800 | 9HP | 9HP | 3KW | as your choice | 2030*1000*1340 | 30/32 | 15 |
