JZ series Concrete Mixer

INTRODUCTION

JZC/JZM series concrete mixer is a self-falling concrete mixing machine which discharging with the double cone barrel rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely. It is suitable for the common construction, road and bridge, and prefabricated concrete parts factory. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!

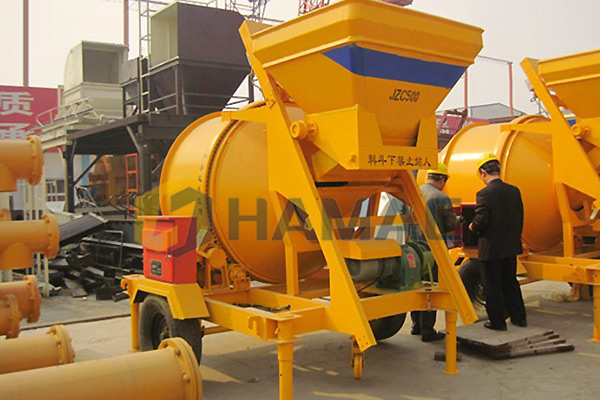

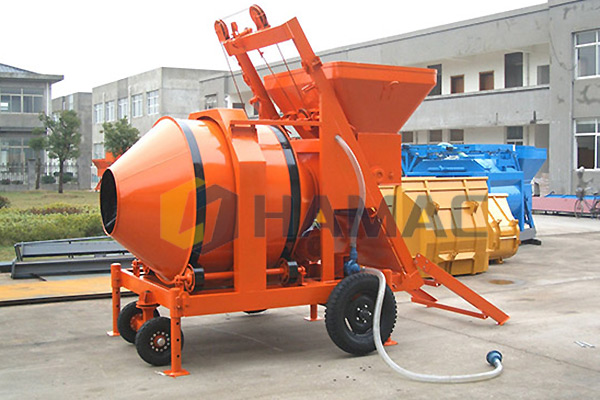

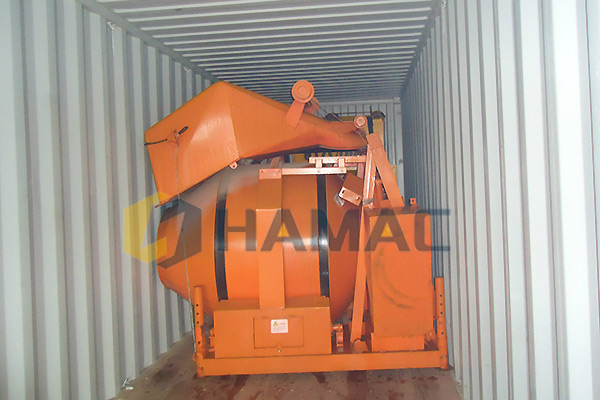

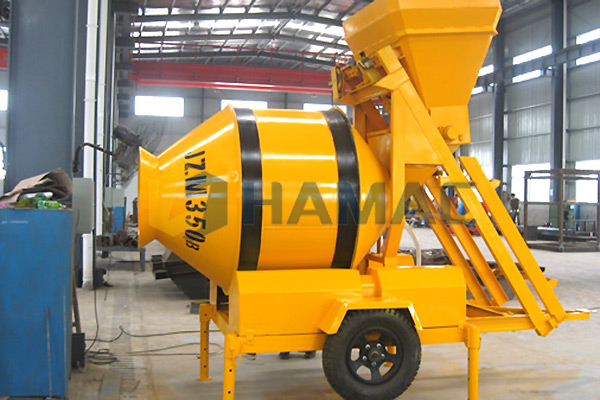

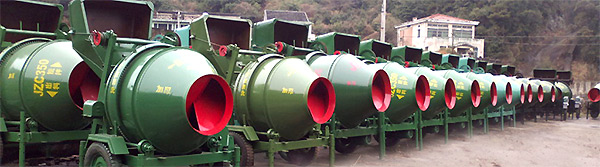

Detailed Photos

FEEDBACK

Performance

1. Good performance;
2. High capacity;
3. Good-quality mixing;
4. Convenient to move;
5. Easy to operate and maintain;
6. Beautiful appearance.

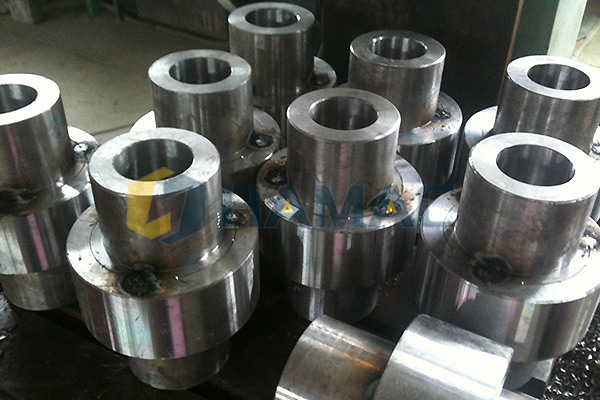

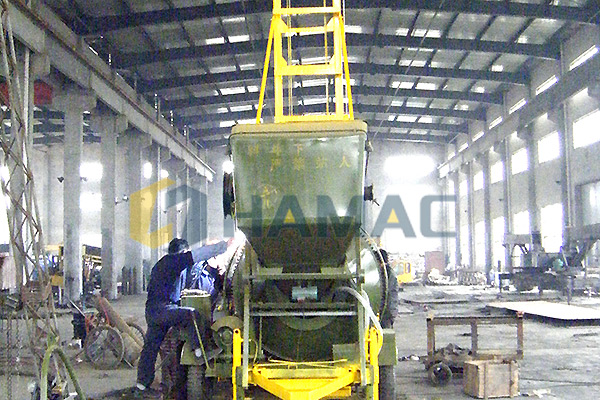

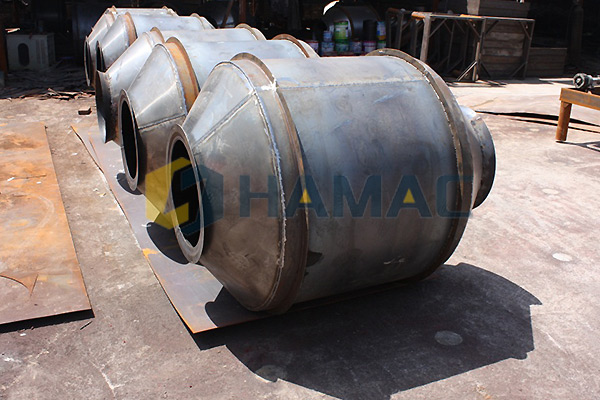

Manufacturing Process

Specification

Model(concrete agitator)	JZC250	JZC350	JZM350	JZC500	JZM500	JZC750
Discharge volume (L)	250	350	350	500	500	750
Charging volume (L)	320	560	560	800	800	1200
Capacity (m3/h)	6-8	10~14	15~18	18~20	20~25	25~30
Drum rotating speed(r/min)	17	14	15	13	13	13
Max. aggregate size (mm)	60	60	60	60~80	60~80	60~80
Water feeding precision	≤2%	≤2%	≤2%	≤2%	≤2%	≤2%
Mixing power (kw)	4	5.5	5.5	11	11	15
Lifting power (kw)	4	4.5	4.5	5.5	5.5	7.5
Water pump (kw)	0.55	0.55	0.55	0.75	0.75	1.1
Tyre type	6.50-16	6.50-16	6.50-16	7.50-16	7.50-16
Max. hauling speed (kw/h)	20	20	20	20	20
Dimensions (mm)	2260x1990 x2750	2766x2140 x3000	3800x2050 x2690	5226x2200 x5460	6200x2110 x5300	6116x2056 x6060
Weight (kg)	1300	1950	1970	3100	3200	4200
