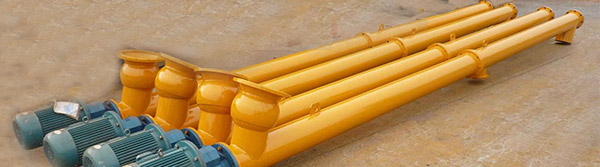

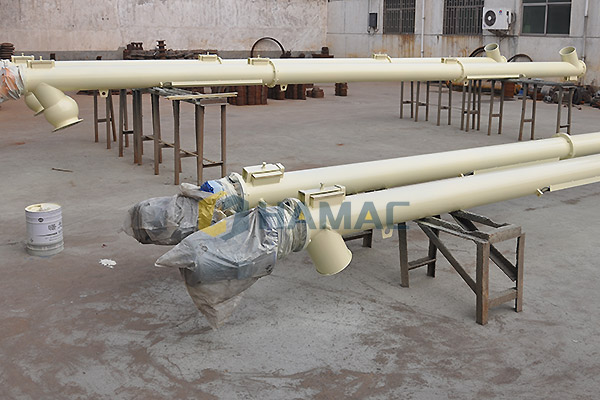

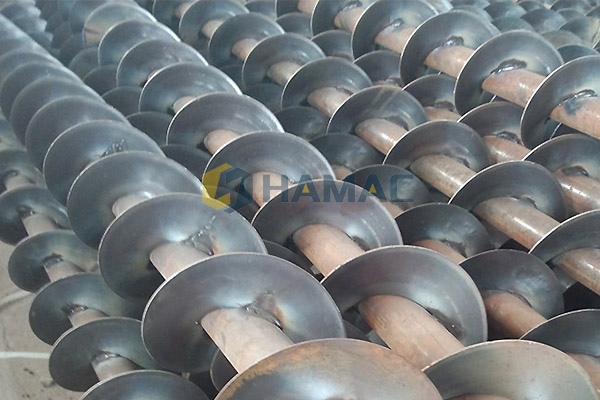

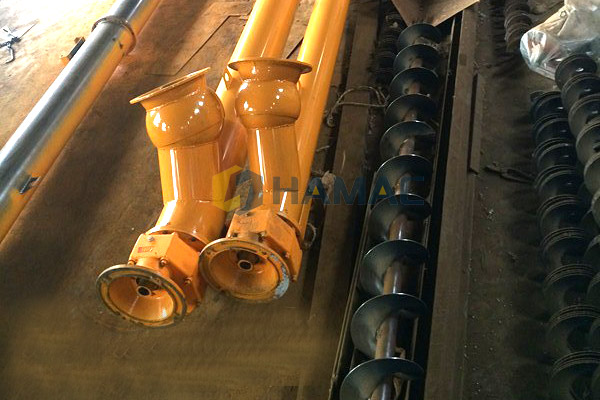

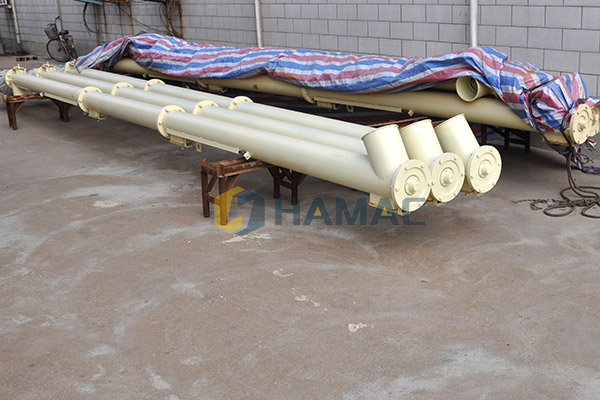

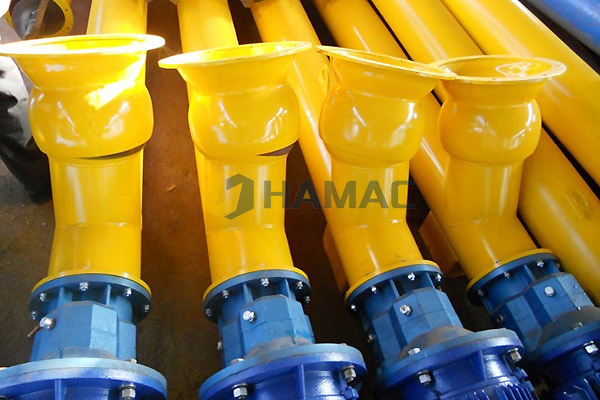

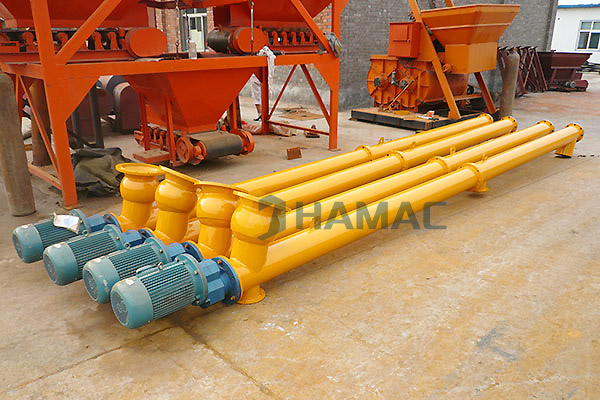

Detailed Photos
Performance
1. We choose the famous brand parts for our screw conveyor;
2. If required by our clients, SICOMA and WAM brands are available also;
3. Equipped with universal joint, can be easily matched with different requirement.
Specification
Model | LSY160-2.5 | LSY160-4.5 | LSY200-6 | LSY200-8(9) | LSY250-8(9) | LSY300-9(12.15) |
Metric Diameter of Screw | 160 | 160 | 185 | 185 | 237 | 305 |
Length of Screw Conveyor | 2.5 | 4.5 | 6 | 8(9) | 9(12.15) | 9(12.15) |
Rotary Speed of Main Axle | 112 | 112 | 100 | 100 | 90 | 80 |
Sheave Diameter | Φ 180 | Φ 180 | Φ 219 | Φ 219 | Φ 273 | Φ 325 |
Working Angle | ≤20 | ≤20 | ≤45 | ≤45 | ≤45 | ≤45 |
Conveying Capacity | 25 | 25 | 35 | 35 | 45 | 75 |
Motor Modes | Y100L2-4 | Y112M-4 | Y132S-4 | Y132M-4 | Y160L-4 | Y180L-4 |
Power of Motor | 3 | 4 | 5.5 | 7.5 | 15 | 18.5 |
