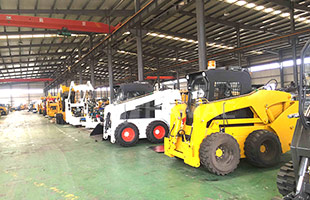

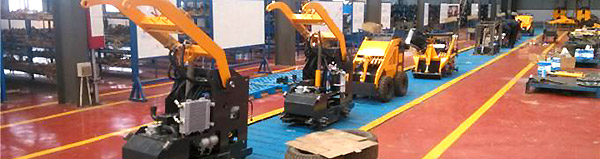

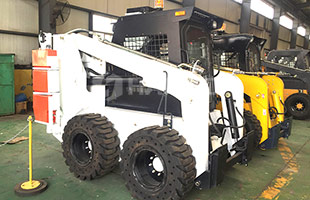

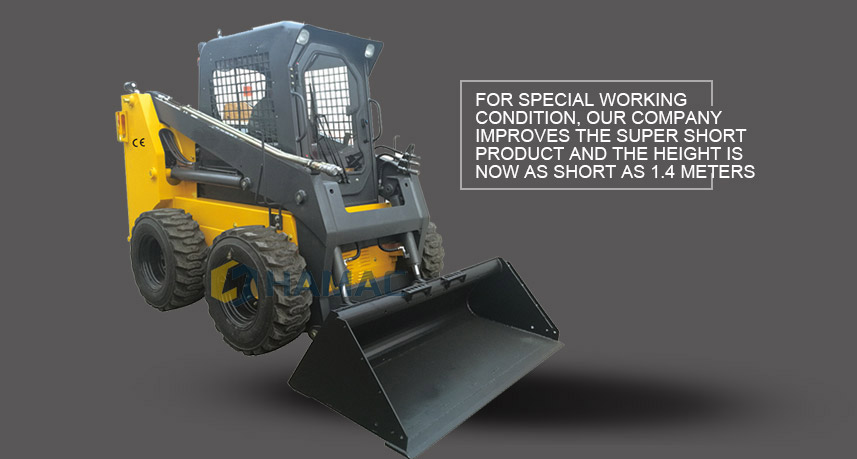

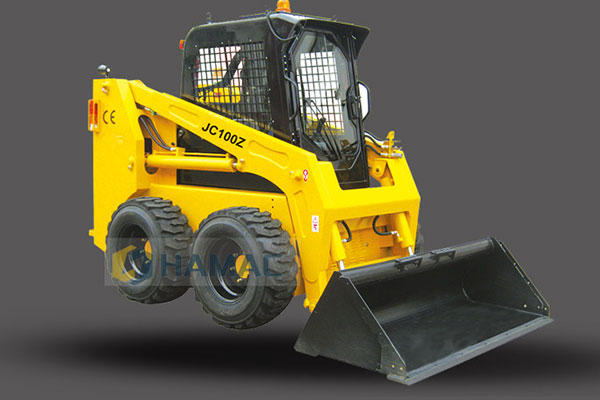

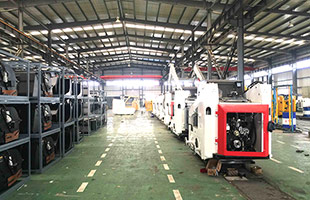

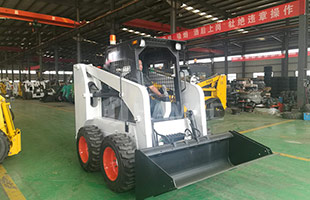

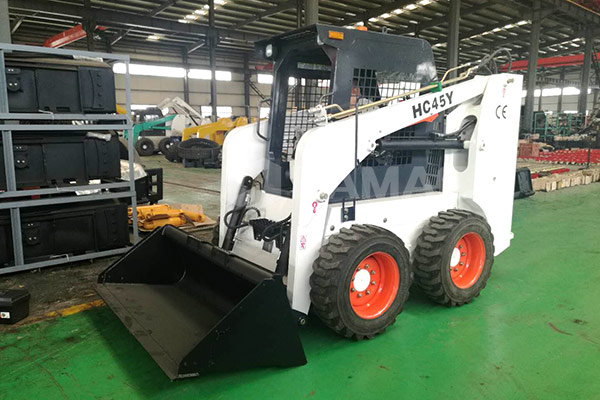

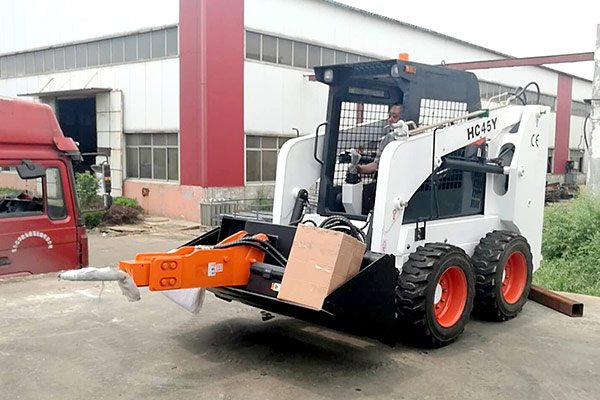

Detailed Photos
Performance
1. The body is designed as a strengthened integration. The whole weight is over 4000kg. The manipulator arm has larger bearing capacity. The bucket cylinder is under the transverse reinforcement plate of arm and gets an effective protection. Moreover, it’s discharging height is higher than other similar products.
2. It is equipped with engine of larger power. All the hydraulic parts are European and American products. It has the advantages of stronger motive power, higher efficiency and better heavy-loading working ability.
3. It applies ultralow temperature starting system and can work in -30℃. And it uses oil-water radiator, ensuring the engine oil work continuously and normally in high temperature.
4. C series skid steer loader can provide high flow flux 140L/min.
Skid Steer Loader Attachments
Skid steer loader attachments offers an extensive, ever-growing line of high-quality skid steer attachments for construction and farming equipment.
-
- Combination Bucket
-
- Pallet Forks
-
- Dozer Blade Grader Leveler
-
- Snow Pusher
-
- Grapple Bucket
-
- Grapple Rake
-
- Bale Squeeze
-
- Grapple Rock Bucket
-
- Hay Spear
-
- Mixer
-
- Digging Backhoe
-
- Utility Digging Backhoe
-
- Pick Up Broom
-
- Tree Spade
From drive units to fully accessorized bundles, Skid Steer Solutions has all your skid steer auger needs covered. Have a look at each of our auger options today and be amazed at everything a skid steer auger attachment can do for you.
Specification
Model | HC75C | HC100C |
Operating Load (kg) | 1050 | 1200 |
Max. Speed (km/h) | 12 | 12/18 |
Hydraulic flow (L/min) | 75 | 75 |
Max. Working Flow (L/min) | 120 | 140 |
Tire Model | 12-16.5 | 12-16.5 |
Rated Power (kW) | 55 | 74 |
Fuel tank Volume (L) | 75 | 90 |
Self Weight (kg) | 3500 | 3550 |
Bucket Volume (m³) | 0.5 | 0.55 |
Structure Data:
Main data Model | HC75C | HC100C |
Overall operating height (mm) | 4070 | 4070 |
Height to bucket hinge pin (mm) | 3150 | 3150 |
height to top of cab (mm) | 2160 | 2160 |
Height to bottom of level bucket(mm) | 2983 | 2983 |
Overall length without bucket(mm) | 2880 | 2880 |
overall length with bucket(mm) | 3580 | 3580 |
Dumping angle at maximum height(° ) | 40 | 40 |
Dumping height(mm) | 2450 | 2450 |
Dumping reach(mm) | 700 | 700 |
Rollback o bucket on ground(° ) | 30 | 30 |
Rollback of bucket at full height(° ) | 104 | 104 |
Wheelbase(mm) | 1115 | 1185 |
Ground clearance(mm) | 205 | 205 |
Angle of departure(° ) | 20 | 20 |
Front turning radius without bucket(mm) | 1250 | 1278 |
Front tuning radius(mm) | 2112 | 2144 |
Rear tuning radius(mm) | 1774 | 1857 |
Rear axle to bumper (mm) | 1082 | 1082 |
Tread width, centerline to centerline (mm) | 1500 | 1500 |
Width (mm) | 1880 | 1880 |
Bucket width (mm) | 1880 | 1880 |
