Mobile Hydraulic Concrete Placing Boom
INTRODUCTION
Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.
Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom - HBT80 Electric concrete pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

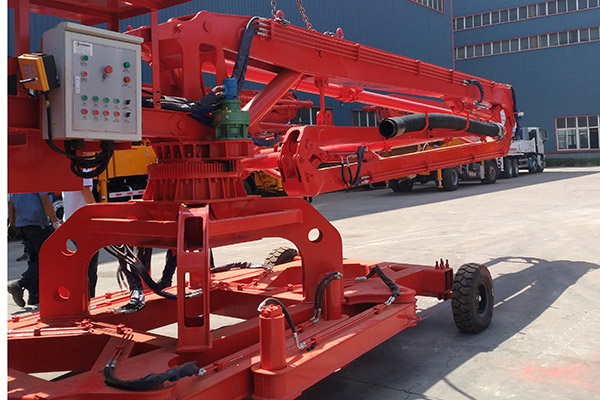

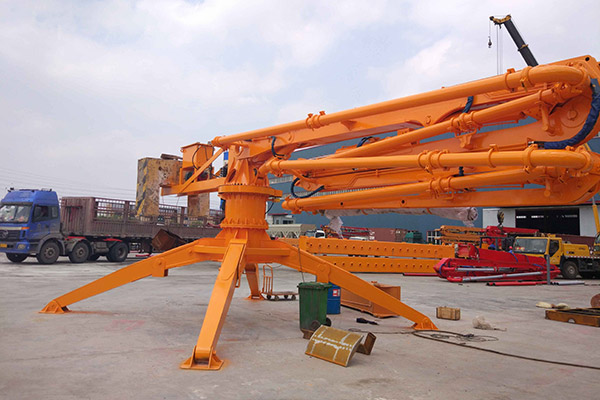

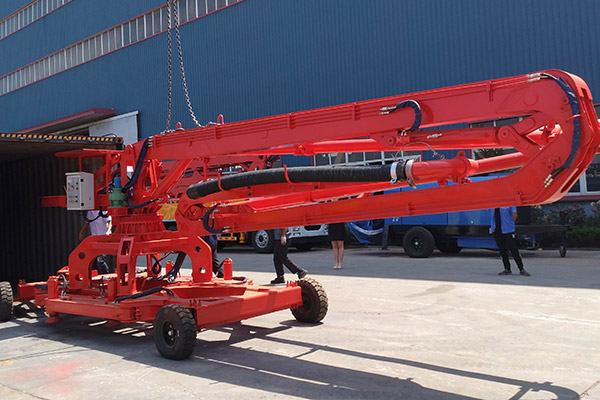

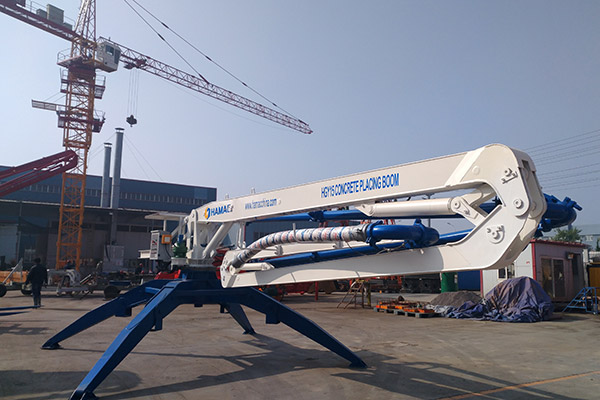

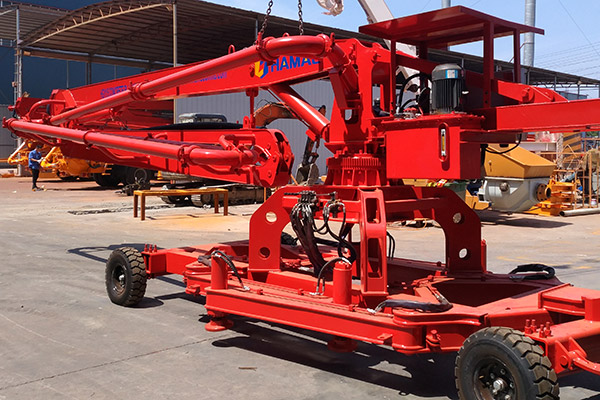

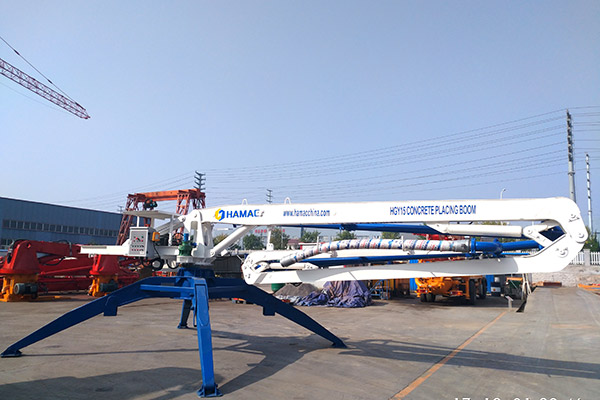

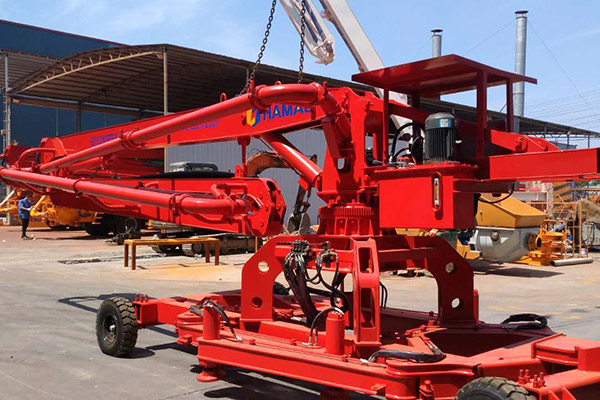

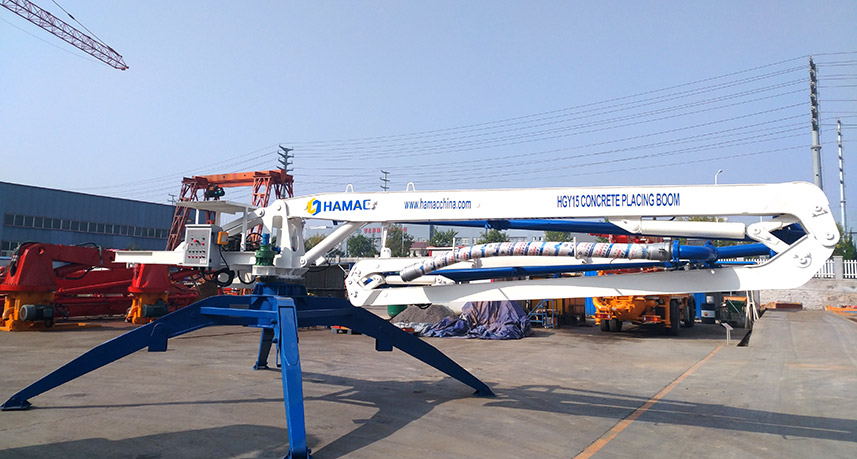

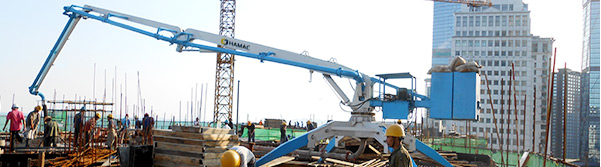

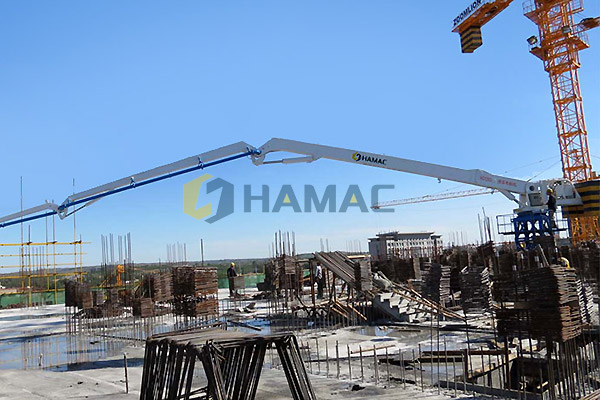

Detailed Photos
Performance

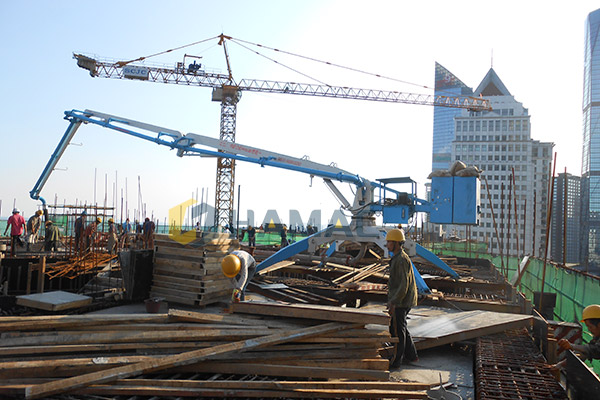

1. It can be placed according to needs of field pouring.
2. Compact structure, light weight, and can be hoisted and transported as a whole.
3. Flexible, widely use and applicable for complex construction site.
4. Easy operation, safe and reliable, economical and practical.
Manufacturing Process
Specification
| Item | HGY13 | HGY15 | HGY17 | HGY21 |
| Max. Placing Radius (M) | 13 | 15 | 17 | 21 |
| Big Arm Length (M) | 3.7 | 6 | 6.66 | 6.496 |
| Big Arm Elevation (°) | -2～84.4 | 0～70 | 0～65 | 0～65 |
| Medium Arm Length (M) | 4.52 | 5 | 5.73 | 4.585 |
| 4.59 | ||||
| Medium Arm Elevation (°) | 0～180 | 0～180 | 0～180 | 0～180 |
| 0～180 | ||||
| Small Arm Length (M) | 4.78 | 4 | 4.61 | 5.029 |
| Small Arm Elevation (°) | 0～180 | 0～180 | 0～180 | 0～180 |
| Hose Length (M) | 3 | 3 | 3 | 3 |

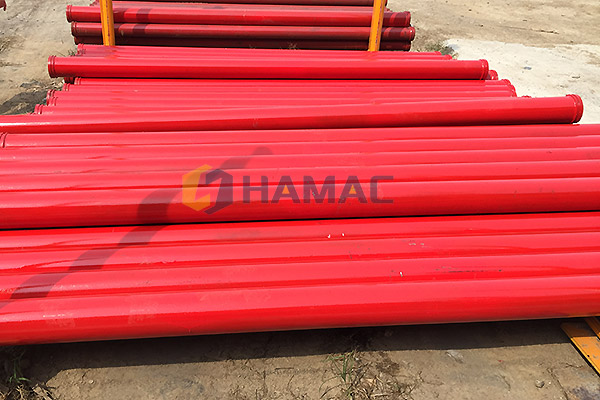

| Concrete Delivery Pipe (Mm) | Ø125×6 | Ø125×6 | Ø125×6 | Ø125×6 |
| Tail Rotary Radius (M) | 2.72 | 2.81 | 3.51 | 3.51 |
| Total Power (Kw) | 4 | 4 | 5.5/7.5 | 11 |
| System Pressure (MPa) | 24 | 24 | 24 | 24 |
| Rotary Speed (R/Min) | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 | 0.3—0.8 |
| Rotary Range (°) | 0～360 | 0～360 | 0～360 | 0～360 |
| Supporting Legs Span (M) | 3.15×3.15 | 4×4 | 4.6×4.6 | 4.6×4.6 |
| Overall Height (M) | 2.9 | 2.6 | 3.2 | 3.2 |
| Bare Machine Weight (Kg) | 2700 | 3230 | 5000 | 10000 |
| Balance Weight (Kg) | 2×900 | 2×1100 | 2200 | 2×2500 |
| Control Mode | Panel/ Wireless Remote Control | Panel/ Wireless Remote Control | Panel/ Wireless Remote Control | Panel/ Wireless Remote Control |
Tags: tower boom concrete pump in Ghana concrete boom pumps in Ghana boom placer schwing stetter in Ghana hydraulic concrete placing boom in Ghana build your own brick making machine skid steer for sale in Zambia new concrete pump trucks for sale in Tanzania, cement truck mixer
Solutions
Concrete Placing Boom
Floor climbing Hydraulic Concrete Placing Boom
Elevator shaft Self-climbing Concrete Placing Boom
Mobile Hydraulic Concrete Placing Boom
Floor climbing Hydraulic Concrete Placing Boom

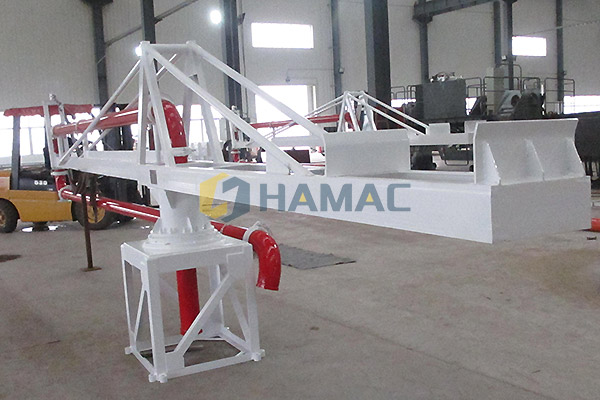

Manual Concrete Placing Boom
