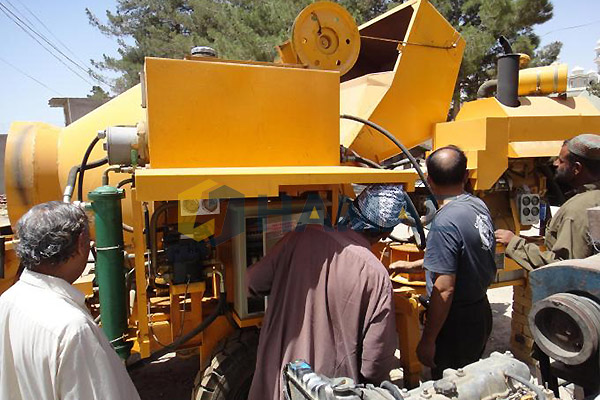

Clients' Working Site

Advantage
Diesel concrete pump mixer is with the rapid and flexible, mobile convenience, speed, labor saving features.
it is combined by the traditional mixing and the traditional concrete pump together, you could tail it by a truck or forklift quickly from a site to the other sites, so the efficiency of mixing concrete pump can be up 4 – 6 times than the traditional mixing and the traditional concrete pump.
Such as: it is usually seven days between two floors of the intervals in the construction site of china, This is the concrete sets up the intensity of time necessary to maintain, during the time, the traditional mixing and the concrete pump have had a rest, because the cost and time is too more to move its, only to stop and waiting. But diesel concrete pump mixer will been moved and used quickly to other three or four sites during the same time. This is diesel concrete pump mixer value.
Specification
Diesel concrete pump with mixer performance parameters
Item | Unit | HBT2008JZC350 |
Pump Max Output | m³/h | 15 |
Theoretical Output | m³/h | 23 |
Max. Pressure on Concrete | MPa | 8 |
The type of distribution valve | S tube valve | |
delivery cylinder | mm | 180×800 |
Diesel model | F4L912(DEUTZ) | |
Diesel power | KW | 45 |
Max. diameter of aggregates | mm | 40 |
Pulling speed | Km/h | ≤8 |
Maximum delivery Horizontal distance | M | 200 |
Maximum delivery Vertical distance | M | 40 |
Mixer Type | TOPLL | JZC350 |
Capacity of charge Hopper | L | 560 |
Capacity of discharge Hopper | L | 350 |
Charge hopper cylinder bore/Rod diameter x stroke | mm | Φ80/Φ50×600 |
Diameter of drum | mm | 1440 |
Drum rotary speed | rpm | 15 |
Charge hopper load up time | s | 6 |
Charge hopper unload down time | s | 4 |
mixing time | s | 45-60 |
Tread distance | mm | 2250 |
length ×width ×height | mm | 5500×2300×2700 |
Weight | Kg | 4500 |
Packing quantity (20 foot) container |
