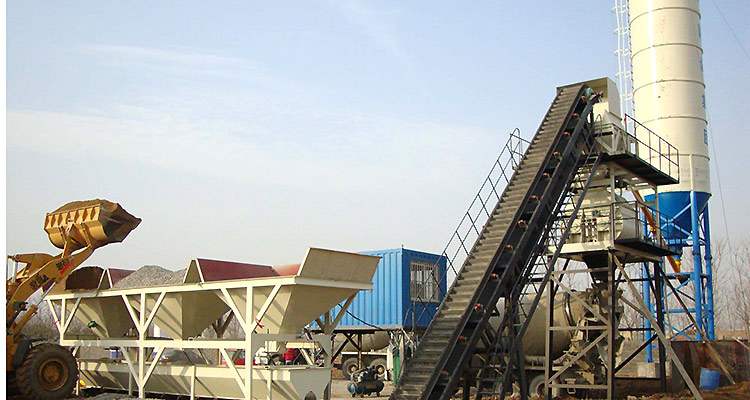

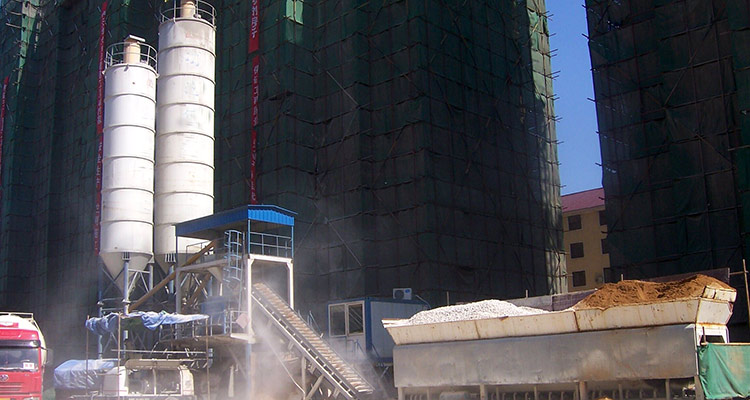

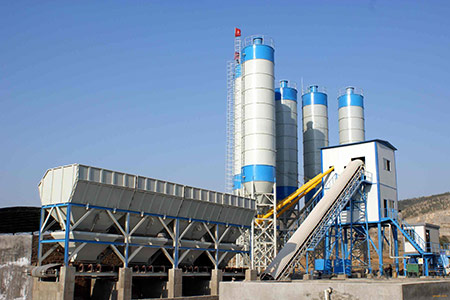

Clients' Working Site


Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS1500 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
Model | HZS75A |
Theoretic productive | 75m3/h |
Concrete mixer | JS1500 |
Maximum aggregate size | 80mm |
volume of aggregate bin | 4×13m3 |
aggregate transporting way | Trough type conveyor |
aggregate weighing | 6000Kg ±2% |
Cement(fly ash) weighing | 1000Kg ±1% |
Water weighing | 500Kg ±1% |
additive weighing | 50Kg ±1% |
total power | 115Kw |
total weight | 53 |
Overall dimension (working condition: LXWXH) | 319000mm×9200mm×109000mm |
discharging height | 3.8 m |
silo (optional) | As client request, the quantity and volume is optional. |
screw conveyor (optional) | One or φ273 screw conveyor for each silo |
