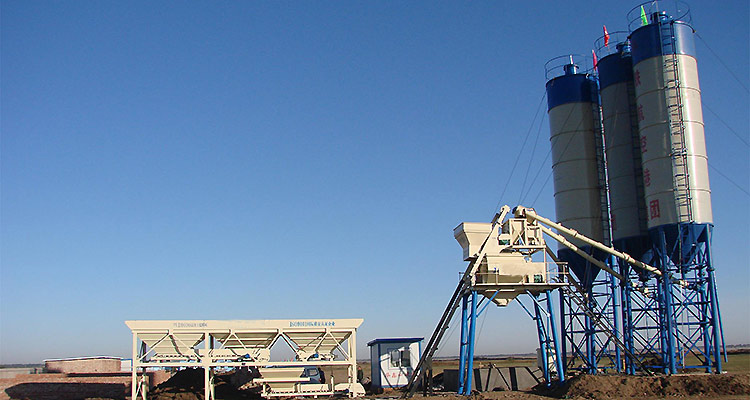

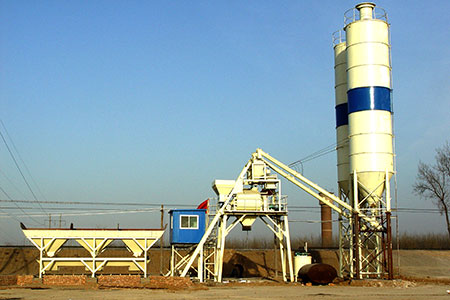

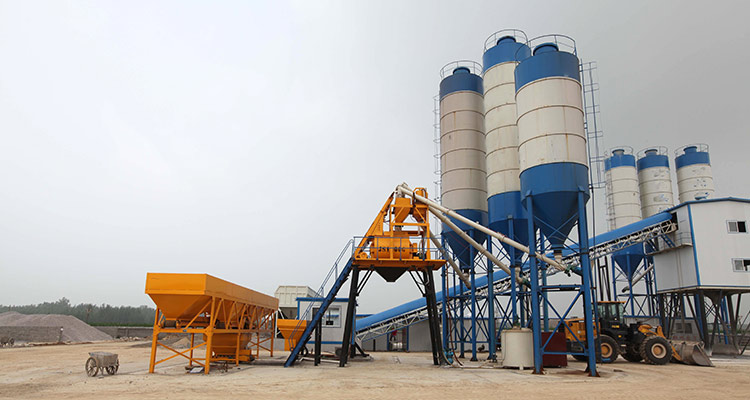

Clients' Working Site


Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS500 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
Model | HZS25 |
Theoretic productive | 25m3/h |
Concrete mixer | JS500 |
Mixer power | 18.5kw |
Maximum aggregate size | 80mm |
volume of discharge prouct | 0.5m3 |
Batcher | PLD800 |
aggregate transporting way | Bucket conveyor |
aggregate weighing | 1500Kg ±2% |
Cement weighing | 300Kg ±1% |
Water weighing | 200Kg ±1% |
additive weighing | 30Kg ±1% |
Loading height | 2.82m |
total power | 45Kw |
total weight | 7.2t(the height of discharge 1.6m) |
7.7t(the height of discharge 2.7m) | |
Overall dimension (working condition: L*W*H) | 6405mm×5428mm×4700mm(the height of discharge 1.6m) |
8063mm×5428mm×6900mm(the height of discharge 1.6m) | |
Silo (optional) | As client request, the quantity and volume is optional for 50t or 100t. |
Screw Conveyor (optional) | One φ219 screw conveyor for each silo |
