Z series Wheeled Skid Steer Loader

INTRODUCTION

Z series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

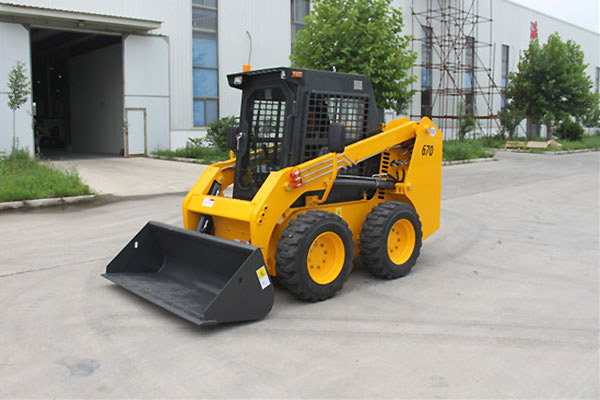

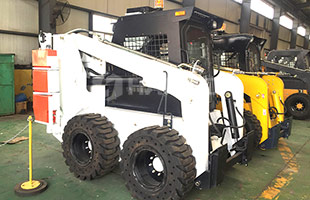

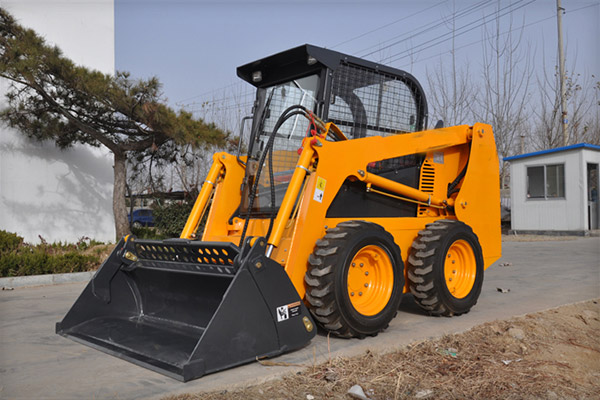

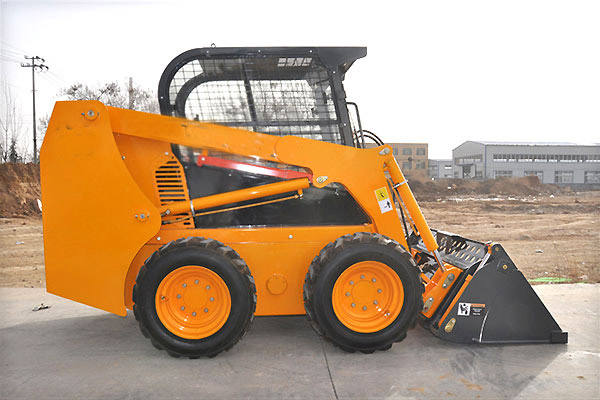

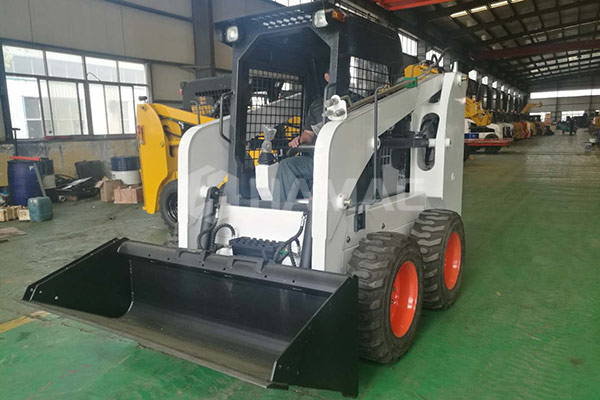

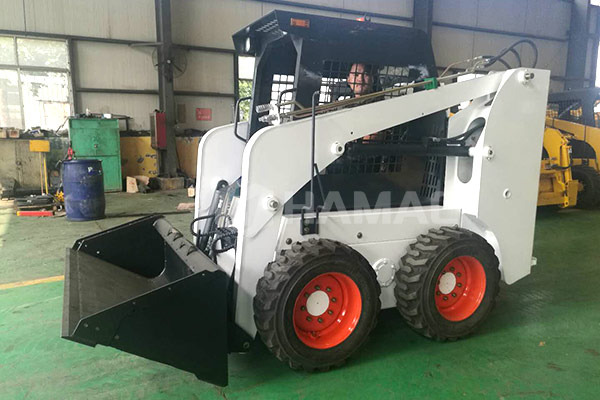

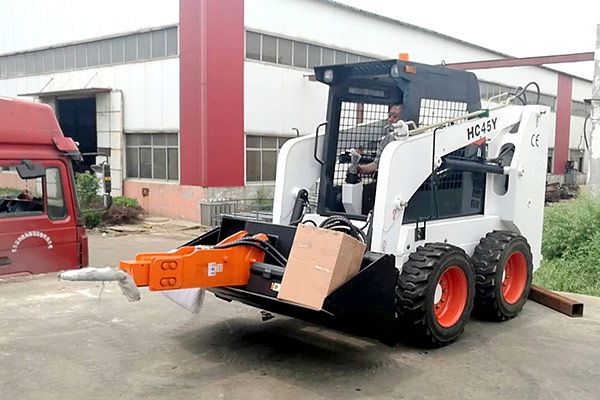

Detailed Photos

FEEDBACK

Performance

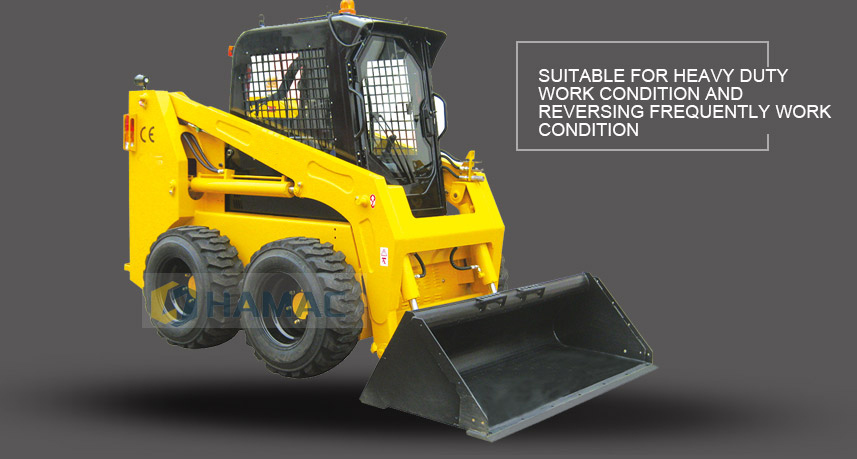

1. Z series is equipped with special gear transmission system, an unique design in China. The driving motor is high-speed plunger motor, reduction gear system is heavy duty type, longer service life. It is suitable for heavy duty work condition and reversing frequently work condition;
2. Powerful diesel engine equipped with transfer case, can be equipped with big power main pump and big flow gear pump. So the loader will provide stronger tractive force and high flow output for attachment;

Skid Steer Loader Attachments

Skid steer loader attachments offers an extensive, ever-growing line of high-quality skid steer attachments for construction and farming equipment.

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

Pick Up Broom

Tree Spade

Get all the Skid Steer Loader Attachments

From drive units to fully accessorized bundles, Skid Steer Solutions has all your skid steer auger needs covered. Have a look at each of our auger options today and be amazed at everything a skid steer auger attachment can do for you.

Specification

Model	HC70Z	HC100Z
Operating Load (kg)	1050	1200
Max. Speed (km/h)	12	12/18
Hydraulic flow (L/min)	75	75
Tire Model	12-16.5	12-16.5
Rated Power (kW)	55	74
Fuel tank Volume (L)	75	90
Self Weight (kg)	3500	3550
Bucket Volume (m³）	0.5	0.55

Structure Data:

Main data/Model	HC70Z	HC100Z
Overall operating height (mm)	4070	4070
Height to bucket hinge pin (mm)	3150	3150
height to top of cab (mm)	2160	2160
Height to bottom of level bucket(mm)	2983	2983
Overall length without bucket(mm)	2880	2880
overall length with bucket(mm)	3580	3580
Dumping angle at maximum height(° )	40	40
Dumping height(mm)	2450	2450
Dumping reach(mm)	700	750
Rollback o bucket on ground(° )	30	30
Rollback of bucket at full height(° )	104	104
Wheelbase(mm)	1115	1185
Ground clearance(mm)	205	205
Angle of departure(° )	20	20
Front turning radius without bucket(mm)	1250	1278
Front tuning radius(mm)	2112	2144
Rear tuning radius(mm)	1774	1857
Rear axle to bumper (mm)	1082	1082
Tread width, centerline to centerline (mm)	1500	1500
Width (mm)	1880	1880
Bucket width (mm)	1880	1880
