Skip hoist type Concrete Batching Plant
INTRODUCTION
Skip hoist concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produce the pre-fabricated concrete component.
Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump - Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

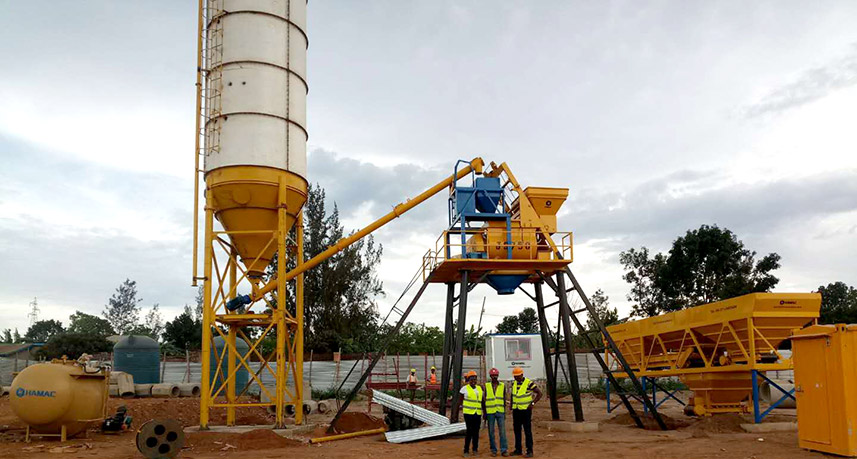

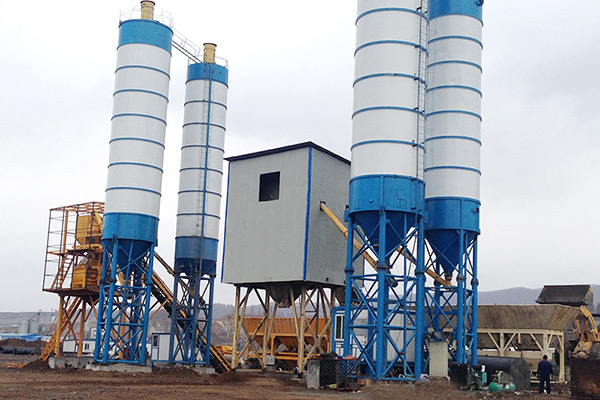

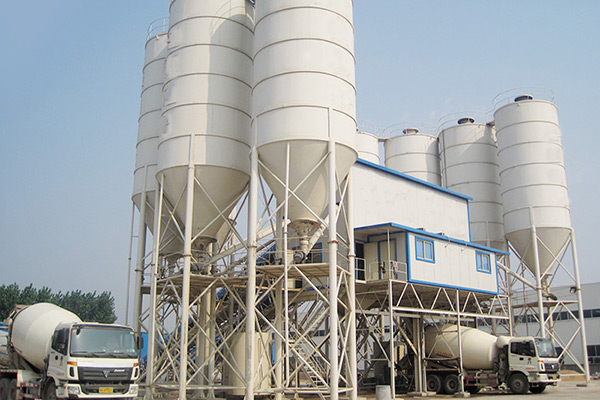

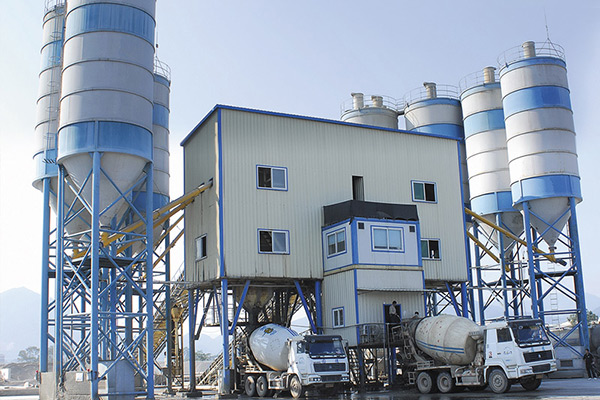

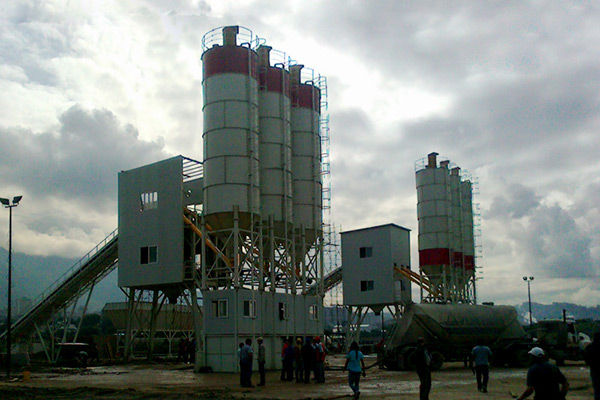

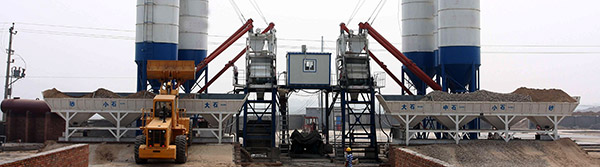

Detailed Photos
Performance

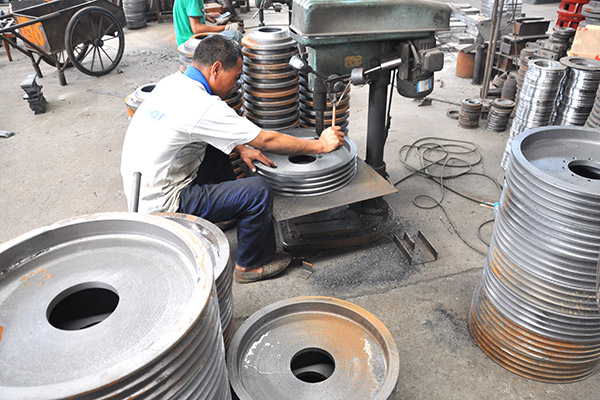

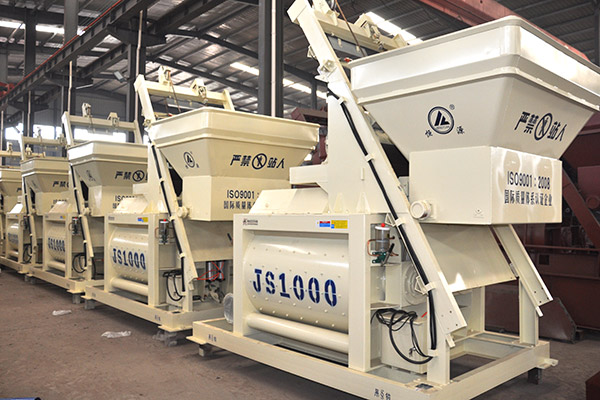

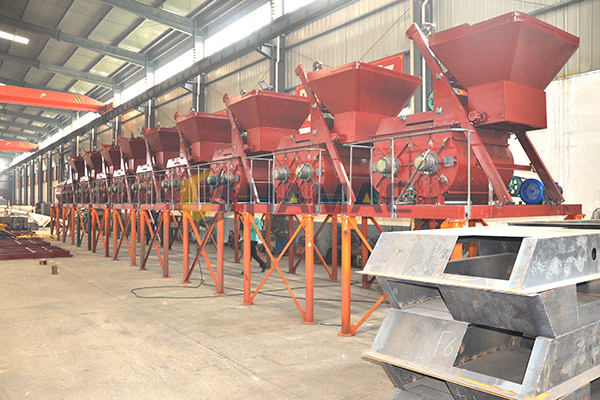

Manufacturing Process
Specification
| Type | HZS25 | HZS35 | HZS50 | HZS75 | |
| Theoretical production capacity(m³/h) | 25 | 35 | 50 | 75 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
| Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m³) | 2/3×3.2 | 2/3/4×7.3 | 2/3/4×8.3 | 2/3/4×12 | |
| Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4500Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 600Kg ±1% | 1500Kg ±1% | |
| Fly ash(KG) | 400Kg ±1% | 600Kg ±1% | |||
| Water (KG) | 200Kg ±1% | 200Kg ±1% | 400Kg ±1% | 600Kg ±1% | |
| Additive(KG) | 30Kg ±1% | 50Kg ±1% | 50Kg ±1% | ||
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 4.1m | |
| Gross weight(T) | 10 | 15 | 40 | 50 | |
Note: Note: Our products are being updated constantly, all rights reserved by HAMAC.
